AGFA DR 400 - Bucky Unit Functionality

Bucky
The bucky is installed in the radiographic table and in the radiographic wall
stand.
The bucky clamps the cassette or detector during exposure and centers them
relative to the Automatic Exposure Control (AEC) and the grid.
The bucky supports cassettes in standard formats as well as DR Detectors with
cassette size format.
The bucky functionalities can be configured according the customer needs.
1
43
6
5
7
2
1.
Bucky drawer
2.
Button to release the brake
3.
Bucky drawer handle
4.
Carrier for the cassette or detector
5.
Knob for rotating the cassette or detector
6.
Clamps
7.
Side clamps

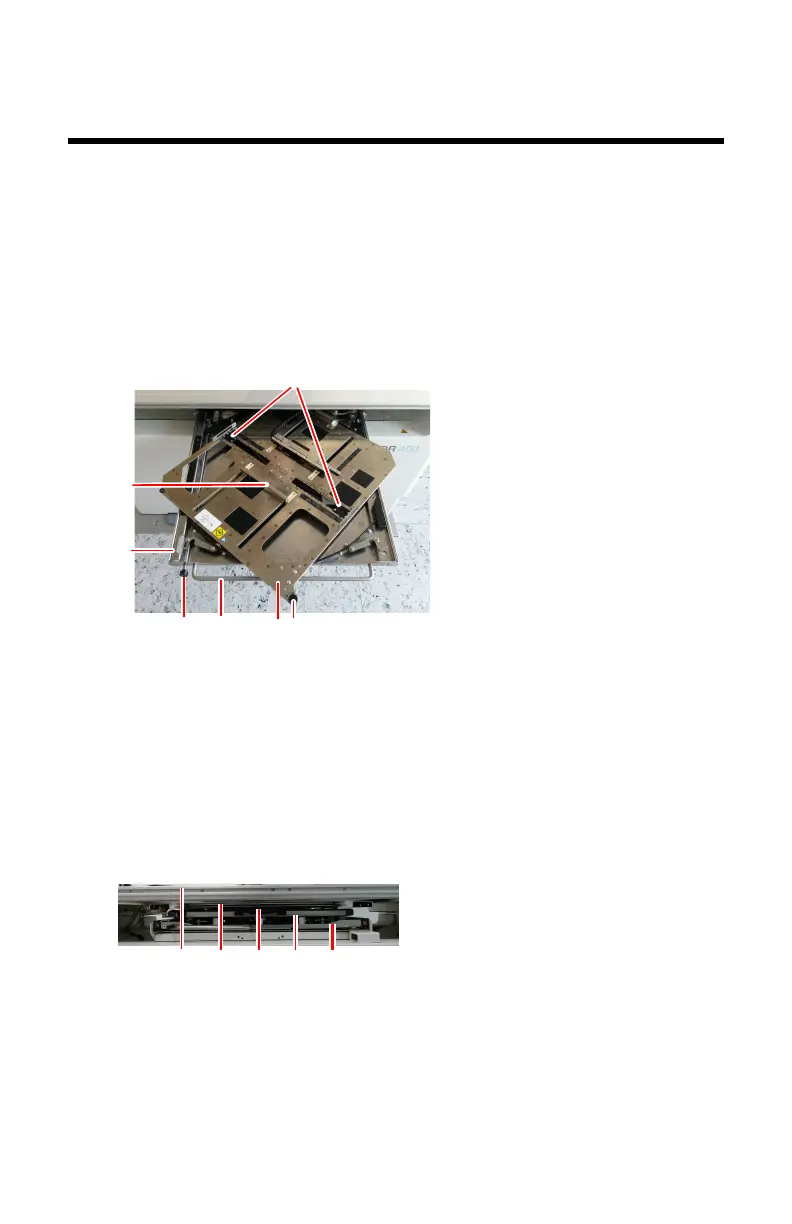

Figure 64: Bucky
1
2
3 4 5
1.
Tabletop
2.
Removable grid
3.
Automatic exposure control (AEC)
4.
Carrier for cassette or detector
5.
Bucky drawer with rotation mechanism
Figure 65: Bucky front view
