AGFA DR 400 - Mounting the Patient Hand Grips

Mounting the patient hand grips
The pair of patient hand grips are used to stabilize the patient and give a
feeling of security. Using the hand grips will avoid the patient grasping the
table edges which could cause a risk to pinch fingers.
To mount a hand grip:
1. Slide the hand grip in the rails of the tabletop.
2. Tighten the hand screw to lock the hand grip in position.
1
1.
Hand screw

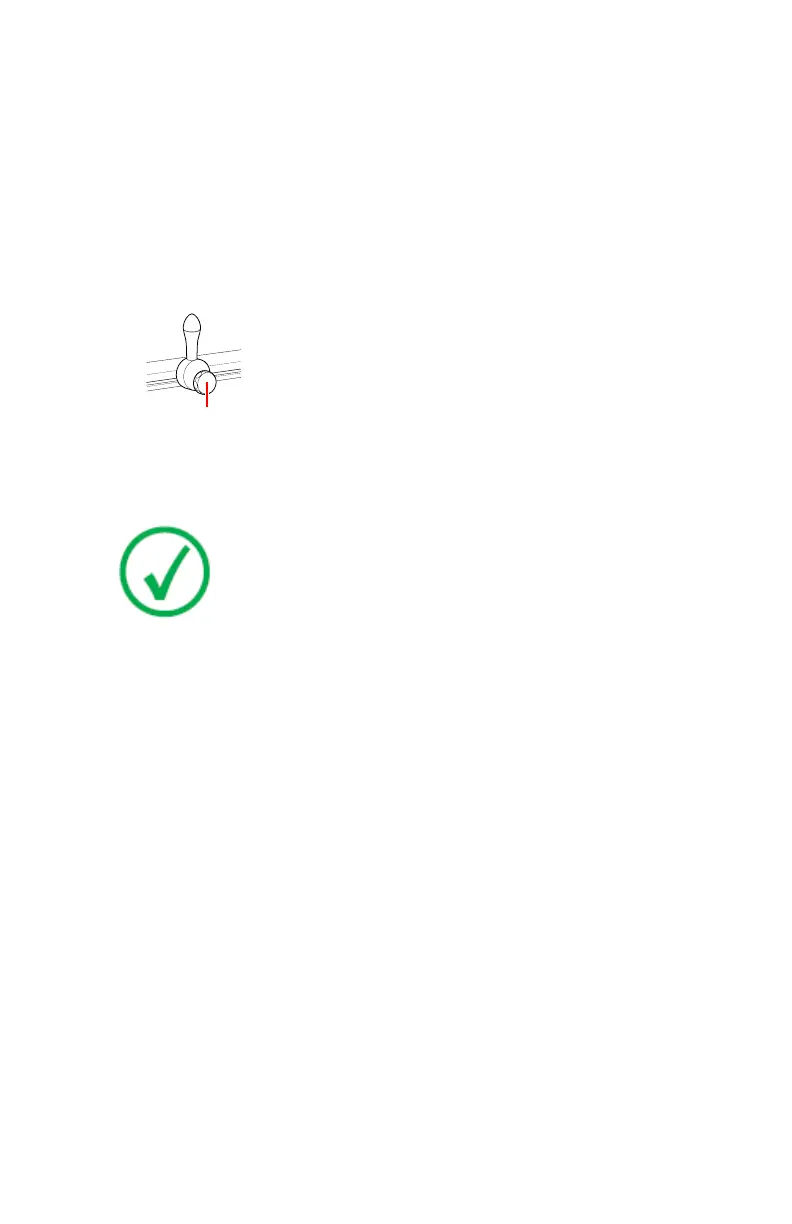

Figure 50: Hand grip
Note: The hand grips are not intended to support the weight of
the patient.
