AGFA DR 400 - Radiographic Table and X-Ray Tube Stand; System Components and Positioning

Radiographic Table and X-Ray Tube
Stand
The radiographic table with integrated X-ray tube stand allows X-ray
examinations from head to foot of lying or sitting patients.
The tube stand has two variants, depending on the side where the tube stand
rail is protruding:
• Left hand version
• Right hand version
The table has two variants:
• table with fixed height
• elevating table with adjustable height
The table has a floating table top.
The table has blue LED in the table foot that is lit when the radiographic table
is selected as active workstation.
1 2 753 64
8
9
10
11

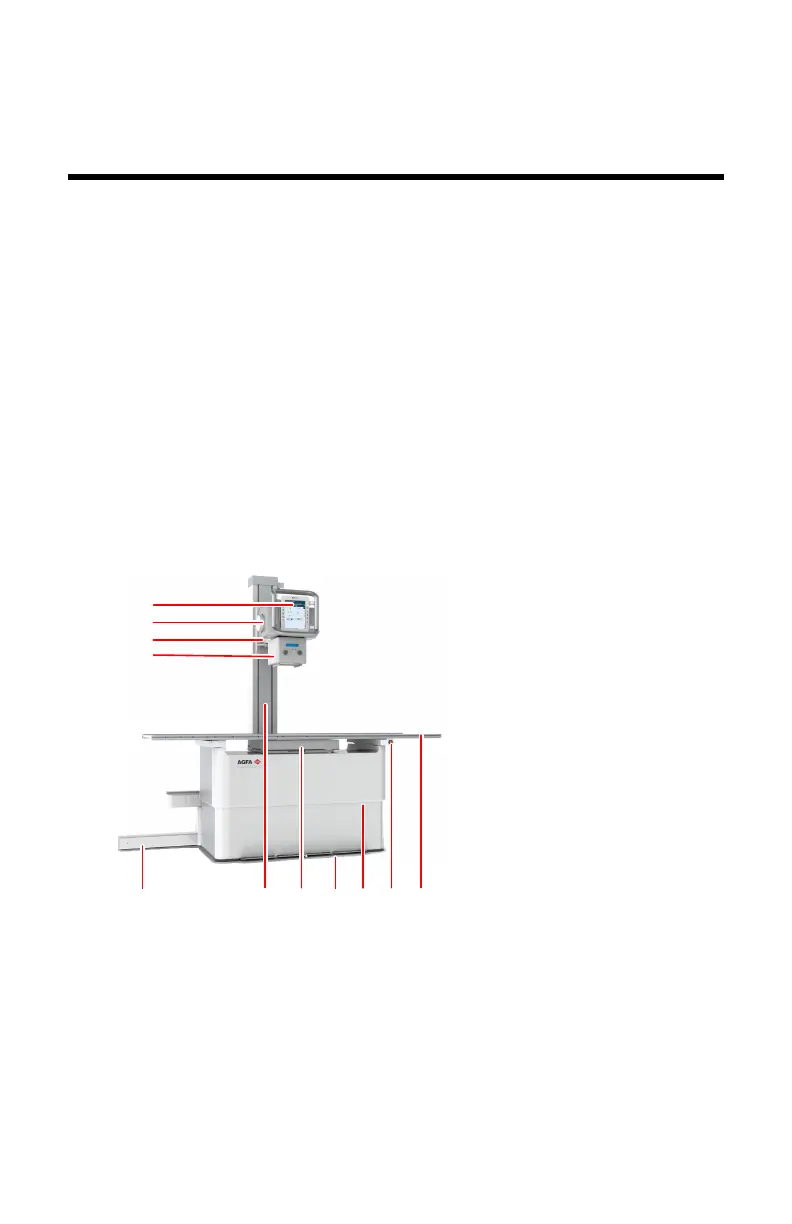

1.
Rail system
2.
X-ray tube stand with SID ruler
3.
Bucky
4.
Tabletop movement pedals,
Blue LED indicator light for active workstation
5.
Table covers with standard exposure height marker
6.
Emergency stop button
7.
Tabletop
8.
Collimator
