AGFA DR 400 - Page 130

9.
X-ray tube arm
10.
X-ray tube
11.

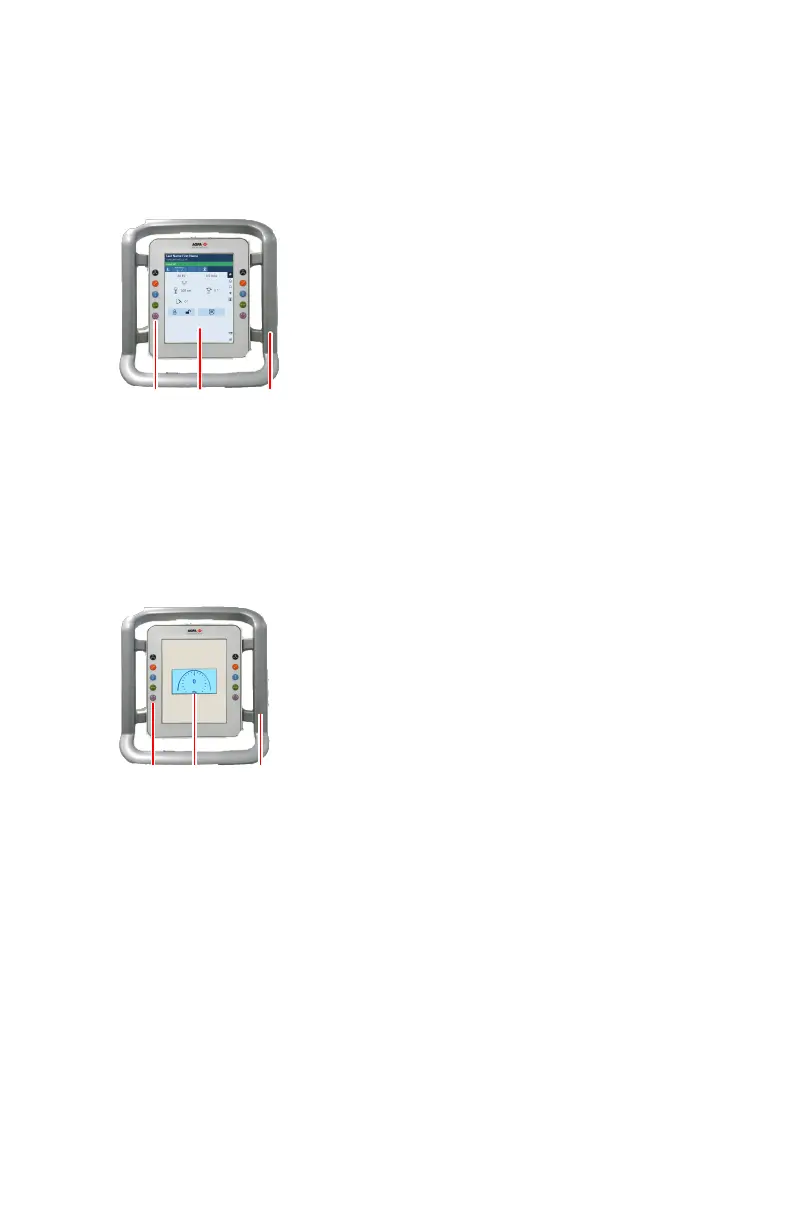

Control panel of the X-ray tube stand
Figure 44: Radiographic table with integrated X-ray tube stand, example of
left hand version
2 31
1.
Movement control buttons
2.
Tube head display
3.
Handle with integrated release button for omni direction movement.
Figure 45: Control panel of the X-ray tube stand
Depending on the configuration, an extra control button for omni direction
movement is available on the lower side of the handle.
2 31
1.
Movement control buttons
2.
X-ray tube angle display
3.
Handle
Figure 46: Control panel of the X-ray tube stand
