AGFA DR 400 - Applied Parts

The Software Console is available on the NX workstation, to synchronize the
X-ray exposure parameters between the NX application and the generator.
Other configurable features include:
• Tube head display with controls for X-ray exposure parameters
• Position tracking for keeping constand SID on table and wall stand
• Bucky with automatic cassette size sensing (ACSS) and automatic
collimator
2
3
6
4
5
1
1.
NX workstation
2.
X-ray tube stand mounted on the radiographic table
3.
X-ray tube with collimator and tube head display
4.
Portable DR Detector
5.
Radiographic table with integrated generator
6.
Radiographic wall stand

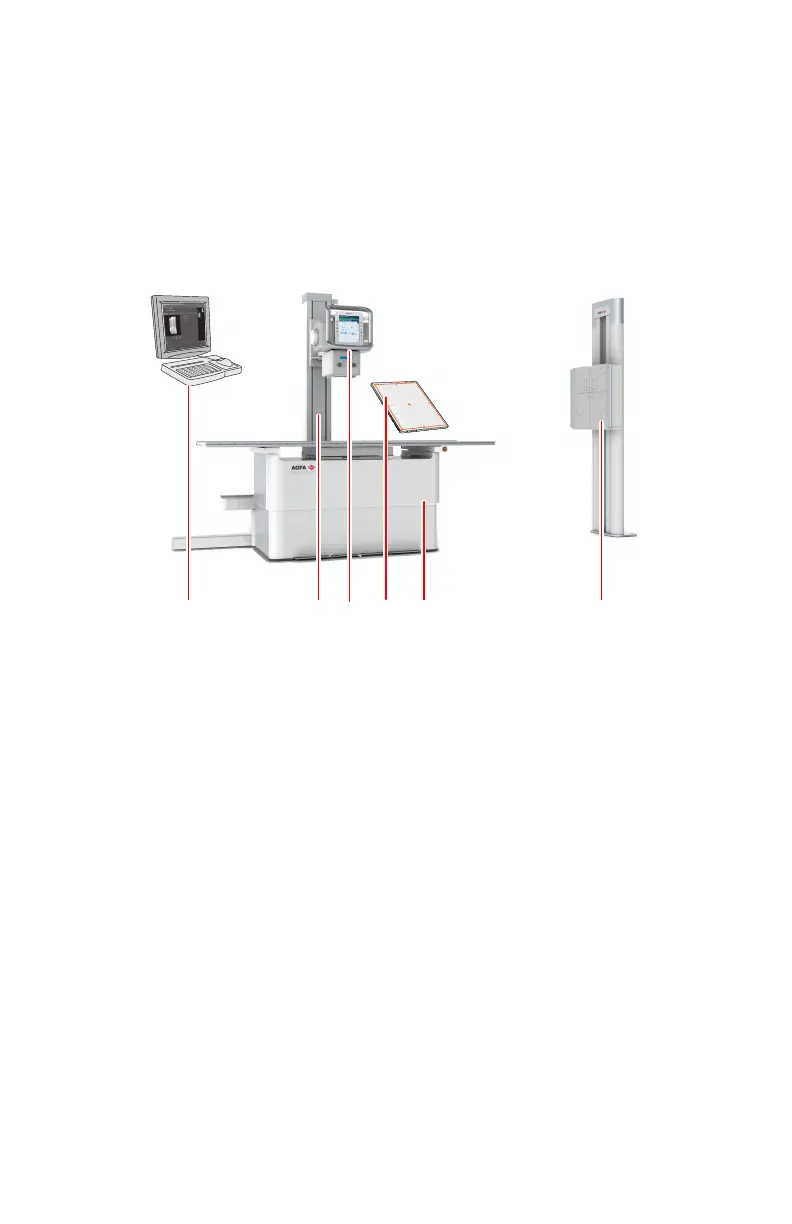

Figure 1: DR 400 configuration for DR
Topics:
• Applied Parts
Applied Parts
Applied Parts refer to parts of the medical electrical equipment that in normal
use necessarily comes into physical contact with the patient for the equipment
to perform its function. This system includes the following Applied Parts:
Topics:
• Radiographic table
• Radiographic wall stand
