Manual collimator
The collimator sets the exposure field and displays it by means of a light field.
The collimator provides X-ray filtering using the integrated filters or by
inserting a filter in the rails.
A DAP meter (Dose Area Product Meter) can be mounted on the collimator by
inserting it in the rails.

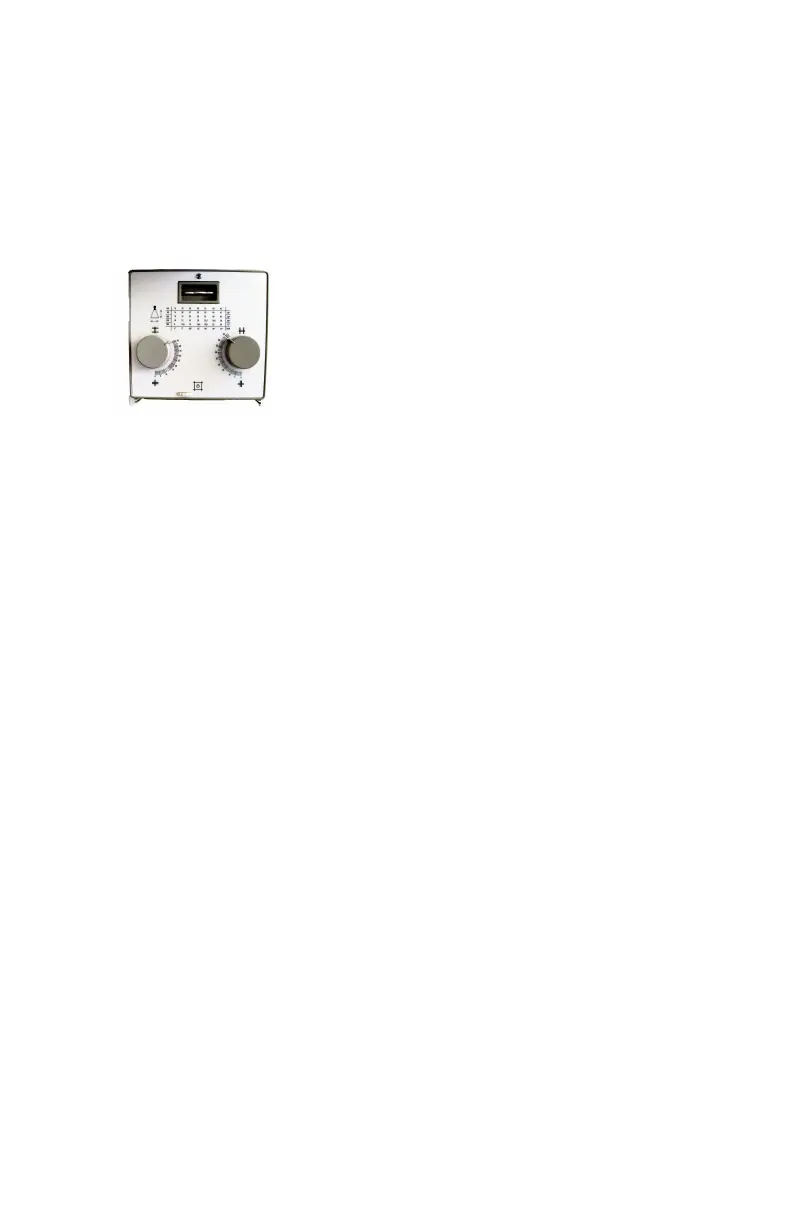

Figure 11: Collimator
Related Links
Manual Collimator Technical Data on page 244
