Cassette and detector formats
To adjust the side clamps to the format of the cassette or detector, indications
are available in cm (and inch, depending on the bucky type). Corresponding
indications are printed on the wall stand cover to align the collimation area.
The large format cassette or detector (43 cm x 35 cm or 17 inch x 14 inch) can
be positioned either centered or aligned to the top of the bucky in landscape
position.
1.
Indicators for large format cassette or detector position to the top of the
bucky
2.
Large format detector positioned to the top of the bucky

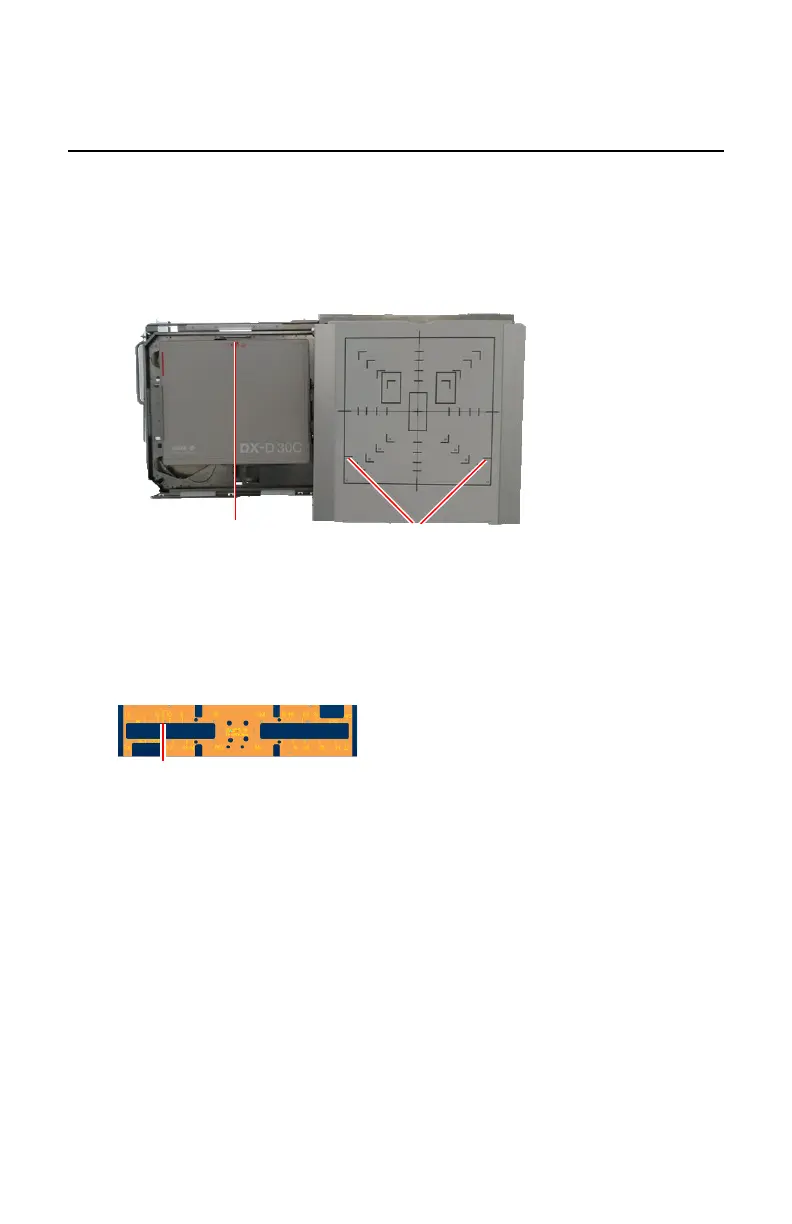

Figure 68: Wall stand bucky with large format detector positioned to the top of
the bucky
1.
Indicators for large format cassette or detector position to the top of the
bucky
Figure 69: Indicators on bucky tray
