Labeling of the Automatic Exposure Control (AEC)

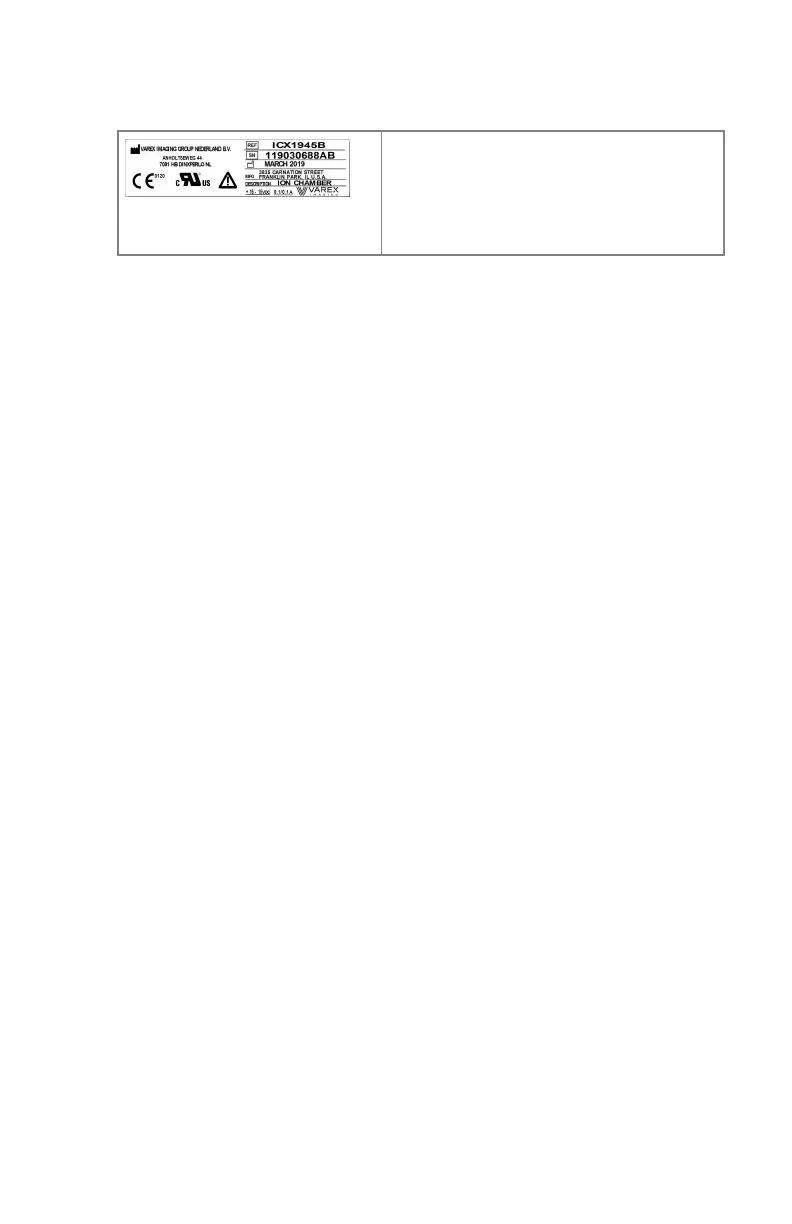

Figure 22: Example of type label
The type label is located on the AEC ioni-
zation chamber. The label is not visible
without disassembling the component.
52 | DR 400 | Introduction to DR 400
3231E EN 20210708 1530
