AGFA DR 400 - Positioning the X-Ray Tube Stand

Positioning the X-Ray Tube Stand
The operation controls of the X-ray tube stand are located at the control panel.
The X-ray tube stand must be positioned by the operator manually.
To release the brake for the selected movement direction or rotation, press
and hold the button and move the X-ray tube stand.
To stop the movement and activate the brake, release the button.

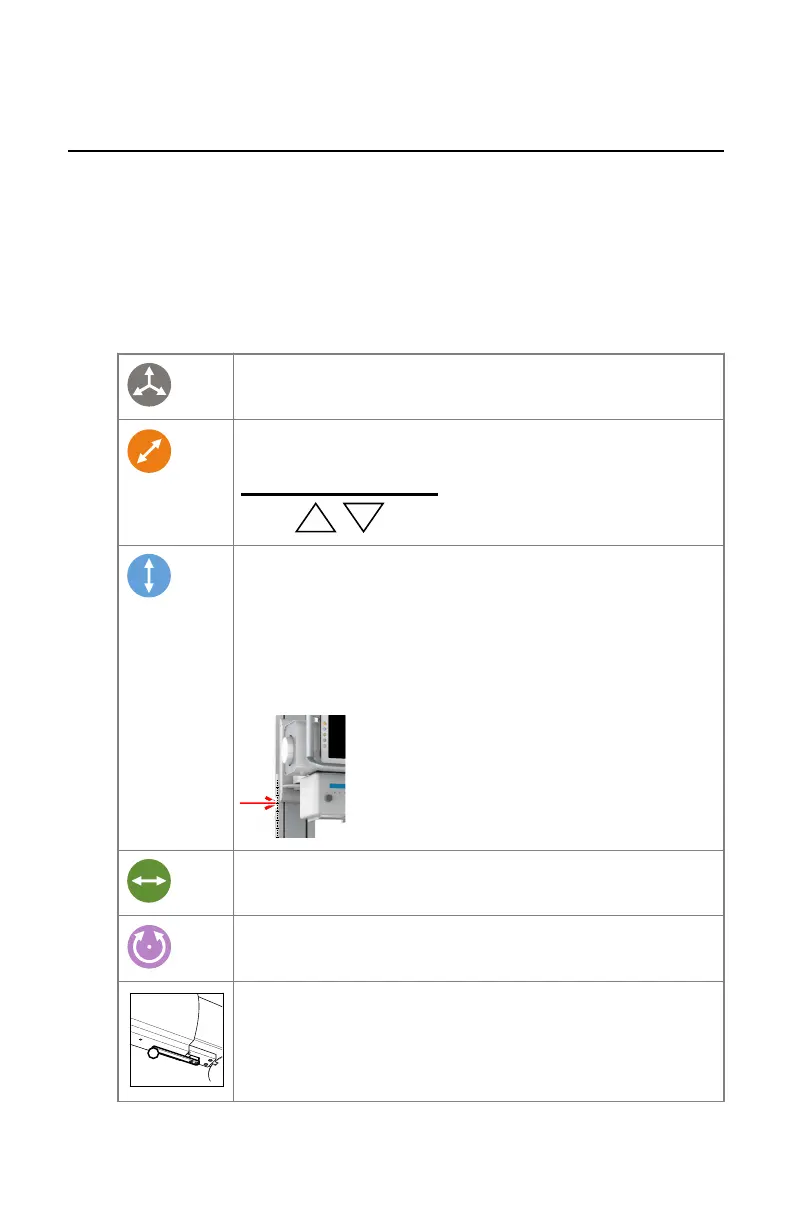

Table 22: Movement controls
Omni direction movement (longitudinal, vertical and alpha
rotation)
Transversal axis movement (back & front).
A marker on the X-ray tube arm indicates the center position.
Vertical axis movement (up & down)
A ruler on the X-ray tube stand indicates the SID when the ra-
diographic table is positioned on the standard exposure
height.
The lower edge of the X-ray tube arm mounting is used for
reference.
110
115
120
105
100
95
Longitudinal axis movement (right & left)
Alpha axis rotation (Angle of the X-ray tube)
Beta axis rotation (swivel of the X-ray tube arm around the
tube stand axis)
132 | DR 400 | Radiographic Table and X-Ray Tube Stand
3231E EN 20210708 1530
