AGFA DR 400 - Orientation of DR 14 S in the Bucky

1
2

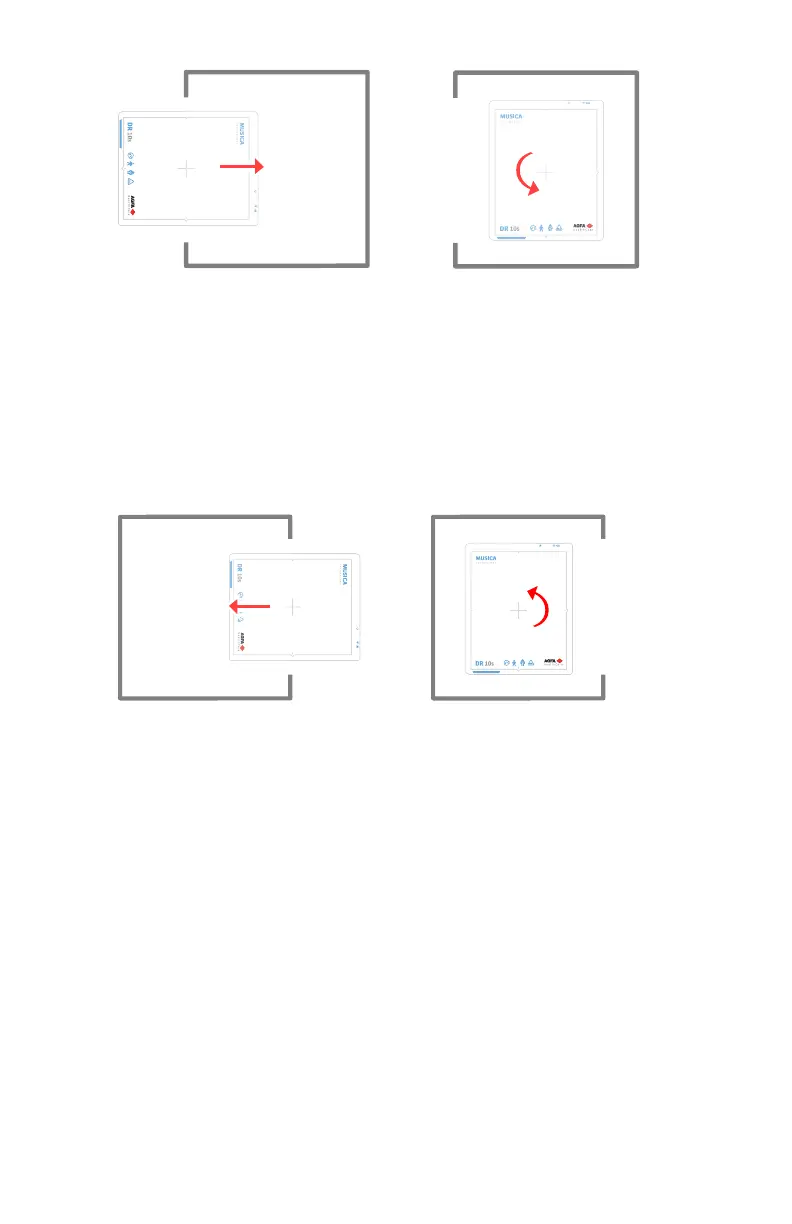

Figure 71: Portrait orientation in the radiographic wall stand left loading
Orientation in the radiographic wall stand right loading
• To use the detector landscape orientation, insert the detector in landscape
orientation.
• To use the detector in portrait orientation:
1. Insert the detector in landscape orientation.
2. Rotate the detector in the bucky.
1
2
Figure 72: Portrait orientation in the radiographic wall stand right loading
Orientation of DR 14s in the bucky
If the bucky is equipped with an internal DR Detector connector, the battery
will be charged while the detector is in the bucky.
Topics:
• Orientation in the radiographic table
• Orientation in the radiographic wall stand left loading
• Orientation in the radiographic wall stand right loading
Orientation in the radiographic table
To use the detector in portrait orientation, insert the detector in portrait
orientation.
To use the detector in landscape orientation:
1. Insert the detector in portrait orientation.
