2. Rotate the detector in the bucky.
1
2

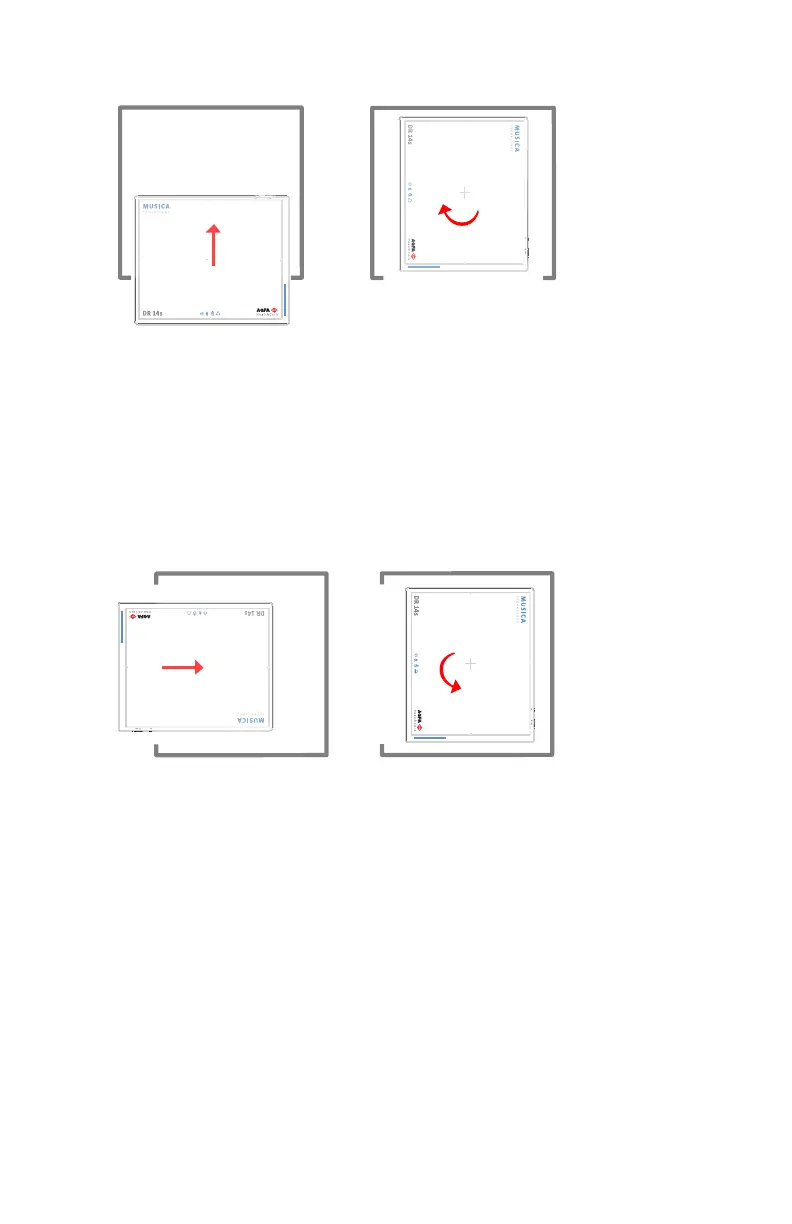

Figure 73: Landscape orientation in the radiographic table
Orientation in the radiographic wall stand left loading
• To use the detector in landscape orientation, insert the detector in
landscape orientation.
• To use the detector in portrait orientation:
1. Insert the detector in landscape orientation.
2. Rotate the detector in the bucky.
1
2
Figure 74: Portrait orientation in the radiographic wall stand left loading
Orientation in the radiographic wall stand right loading
• To use the detector landscape orientation, insert the detector in landscape
orientation.
• To use the detector in portrait orientation:
1. Insert the detector in landscape orientation.
2. Rotate the detector in the bucky.
