Agilent 6890 Gas Chromatograph Service Manual
Cool On-Column Inlet 230
Leak testing EPC and manual inlets

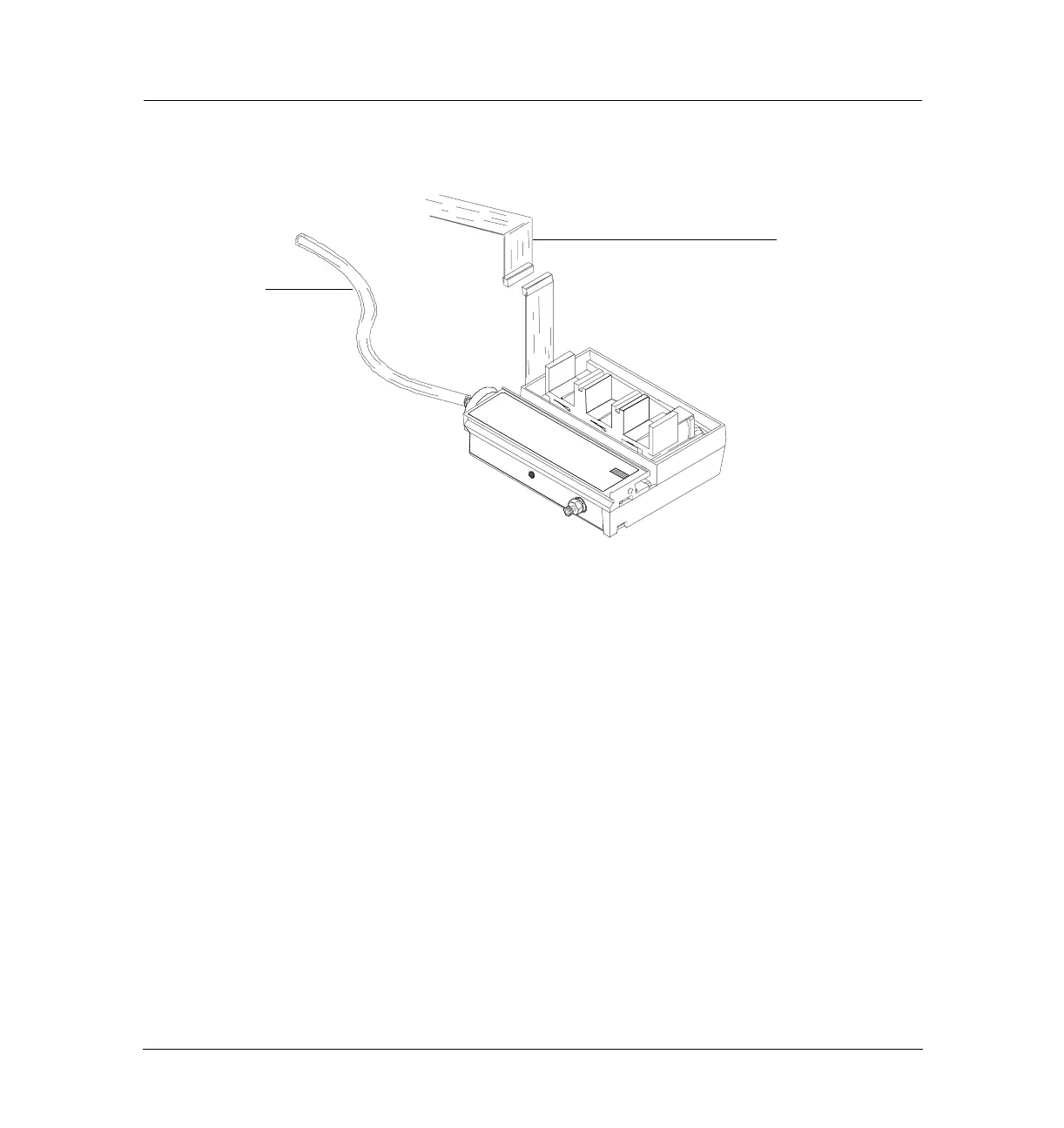

Figure 230-10 Leak testing the EPC module on the lab bench
10. If the leaky component is serviceable, such as vent/inlet fittings (see the
following diagram of serviceable parts, Figure 230-11), replace them.
Otherwise, replace the EPC module.
To gas supply
Ribbon cable from
leak test kit
