Agilent 6890 Gas Chromatograph Service Manual
Covers and Fans 410
Removing the inlet carrier
Removing the inlet carrier
The inlet carrier is the black, molded, plastic pallet mounted over the two
inlet ports underneath the blue cover.
1. Remove the left side cover.
2. Remove the blue cover from the inlet carrier.
3. Unclip the four wiring harnesses from the left side of the inlet carrier.

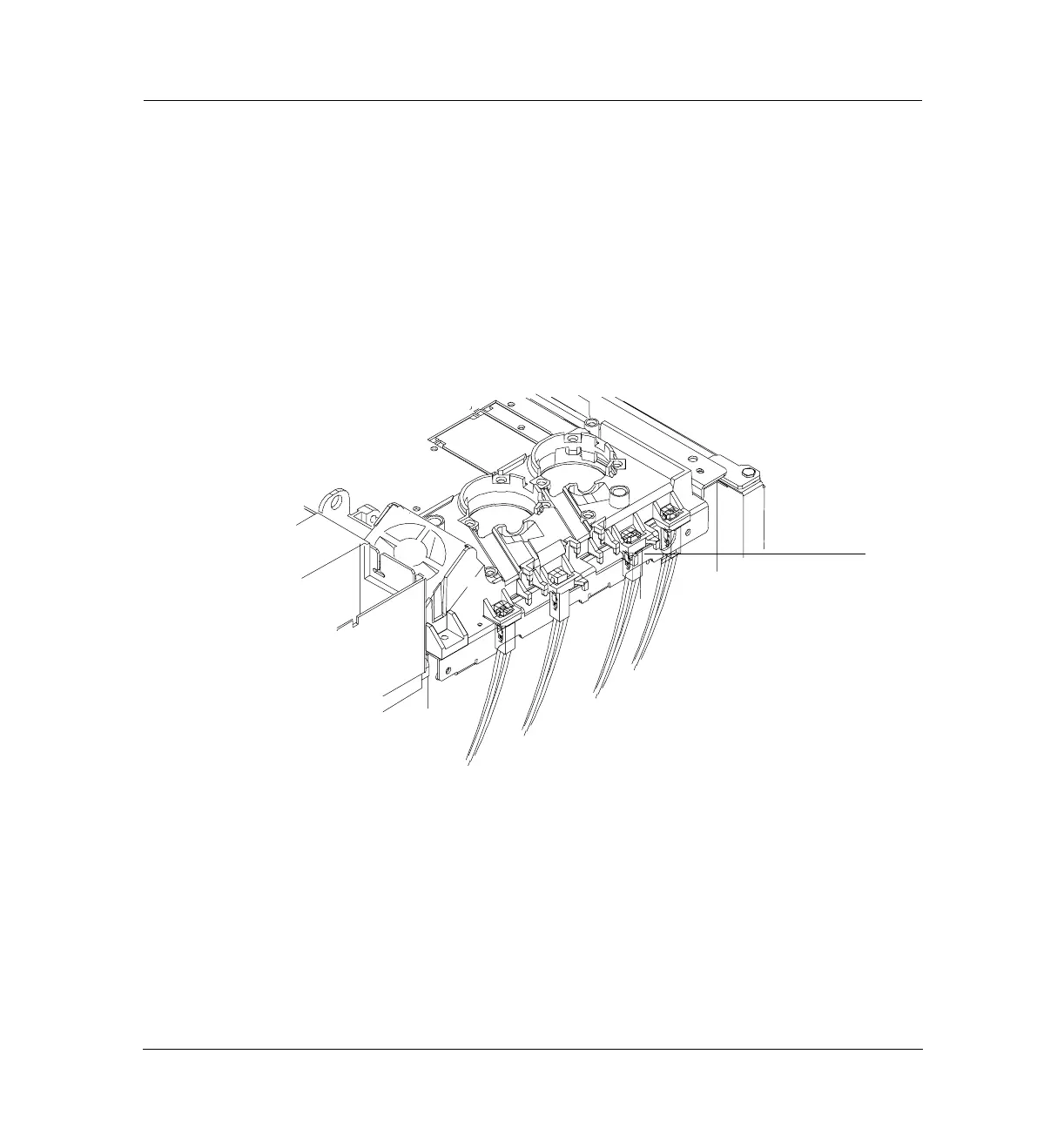

Figure 410-13 Removing the inlet carrier
4. Disconnect the fan from the connector to the right of the fan on the oven
top.
5. Remove any installed inlets.
6. Remove the four screws (Torx T-20) from the top of the carrier and
remove the carrier.
Wiring harnesses
