Agilent Technologies 6890 Series - Replacement Procedures; Replacing or Cleaning the Interface

250 Volatiles Interface
Replacement procedures
8 of 30
Jun 2001
Inlets
Agilent 6890 Gas Chromatograph Service Manual
Replacement procedures
Replacing or cleaning the interface

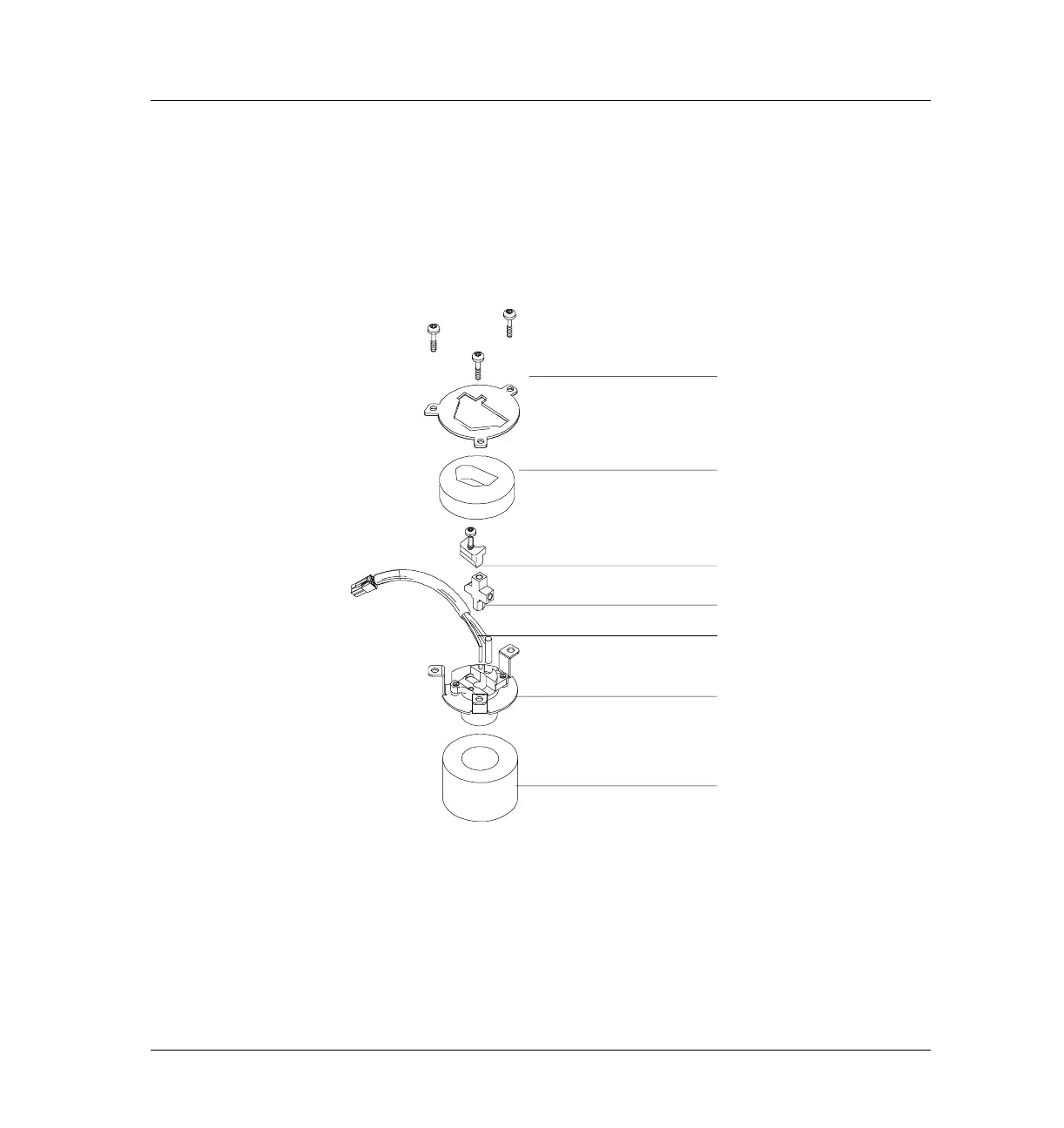

Figure 250-5 The volatiles interface
Top plate
Top insu lation
Clamping plate
Volatiles interface
Heater/block
Heater/sensor wire
Block insulation
