410 Covers and Fans
Removing the right side cover
10 of 20
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual
Removing the right side cover
1. Fully loosen the two captive screws (Torx T-20) at the top of the cover.

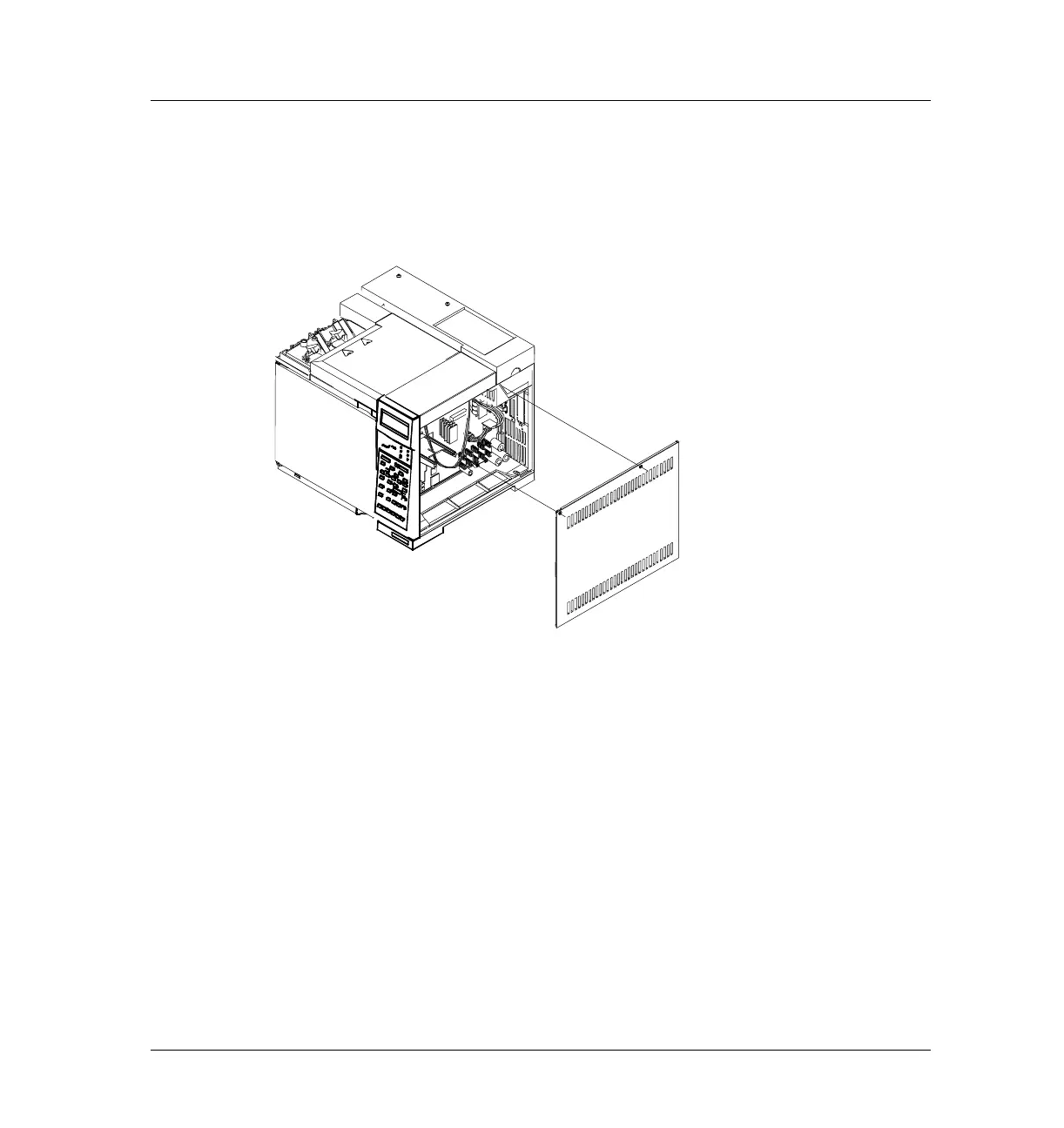

Figure 410-10 Removing the right side cover
2. Slide the side cover slightly to the rear of the GC and lift the cover out of
the slot in the bottom of the chassis to remove it.
