Mainframe
Agilent 6890 Gas Chromatograph Service Manual
Covers and Fans 410
Removing the left side cover
Removing the left side cover
1. Fully loosen the two captive screws (Torx T-20) at the top of the cover.

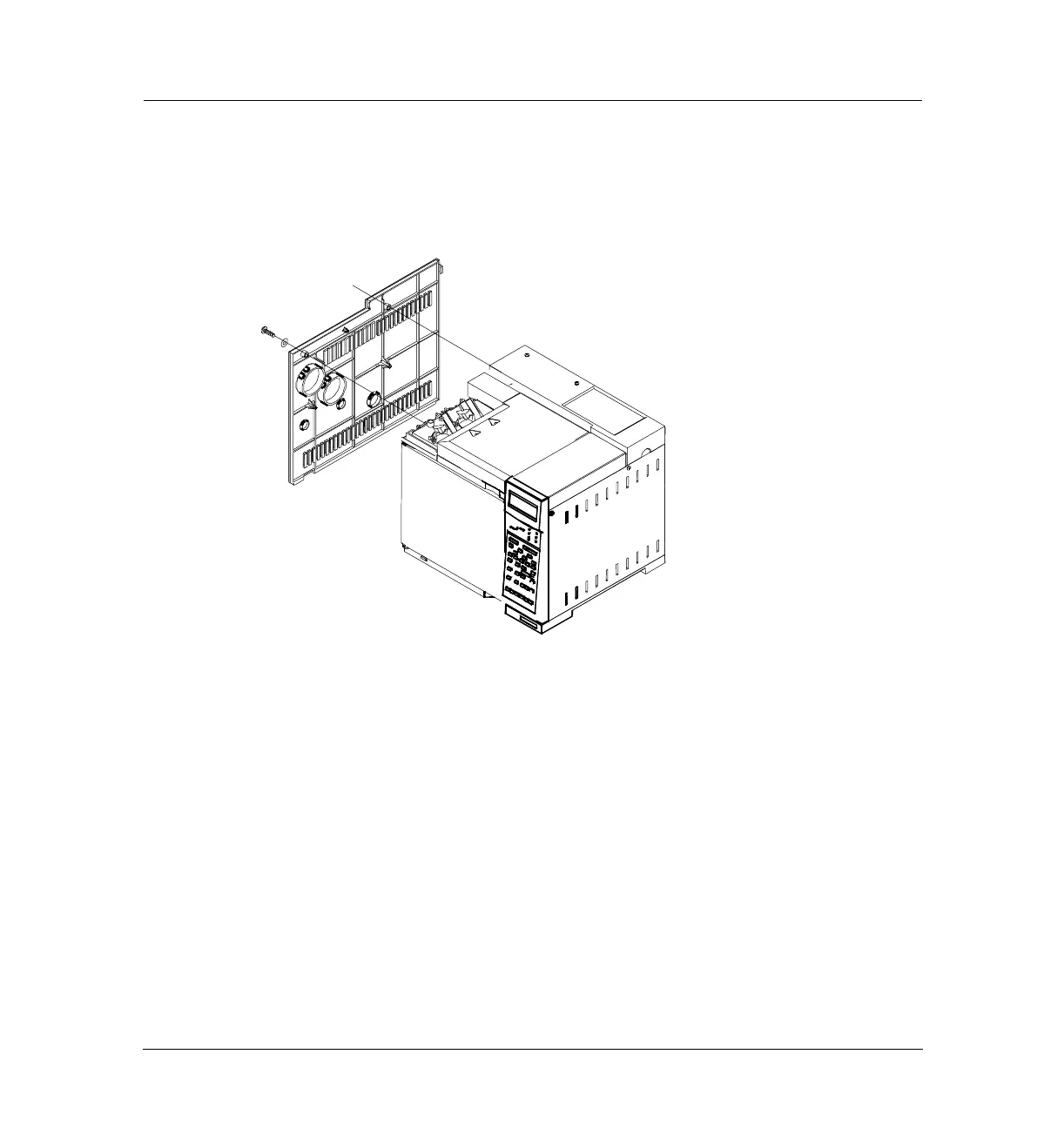

Figure 410-9 Removing the left side cover
2. Slide the side cover slightly to the rear of the GC and lift the cover out of
the slot in the bottom of the chassis to remove it.
When replacing the cover, be sure any wires or pneumatic lines are properly
routed so that they are not pinched by the cover.
