Agilent Technologies 6890 Series Service Manual

19 of 20
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual
Covers and Fans 410
Removing the pneumatics area fan

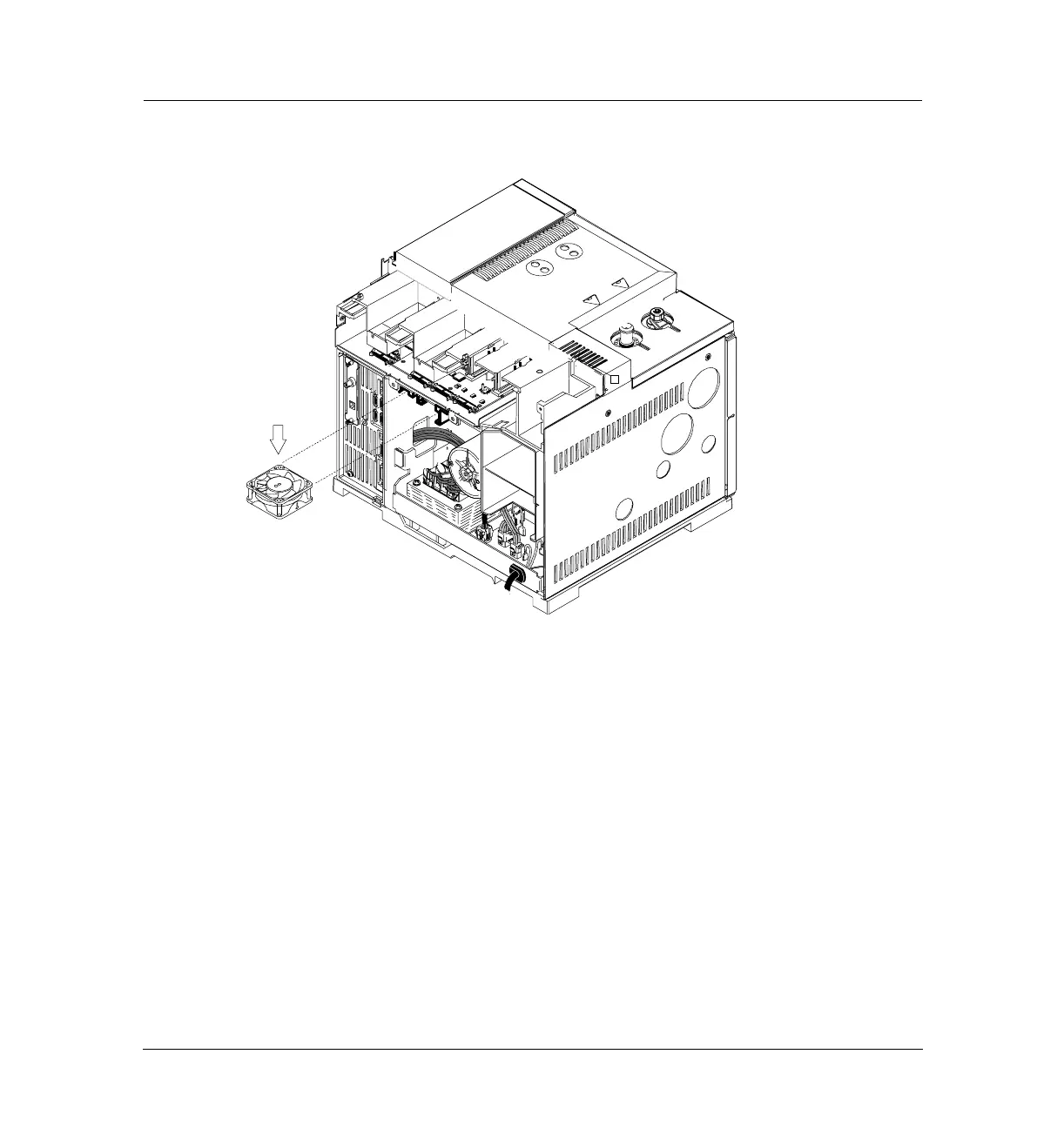

Figure 410-17 Replacing the pneumatics area fan
Bracket mounted fan
1. Remove the pneumatics cover, the top rear panel, and the bottom rear
panel. (You may need to remove the RFI cover.)
2. Disconnect the fan’s connector from the main wiring harness.
Air Flow
