Agilent Technologies 6890 Series Service Manual

25 of 36
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
Flame Photometric Detector (FPD) 350
Replacement procedures

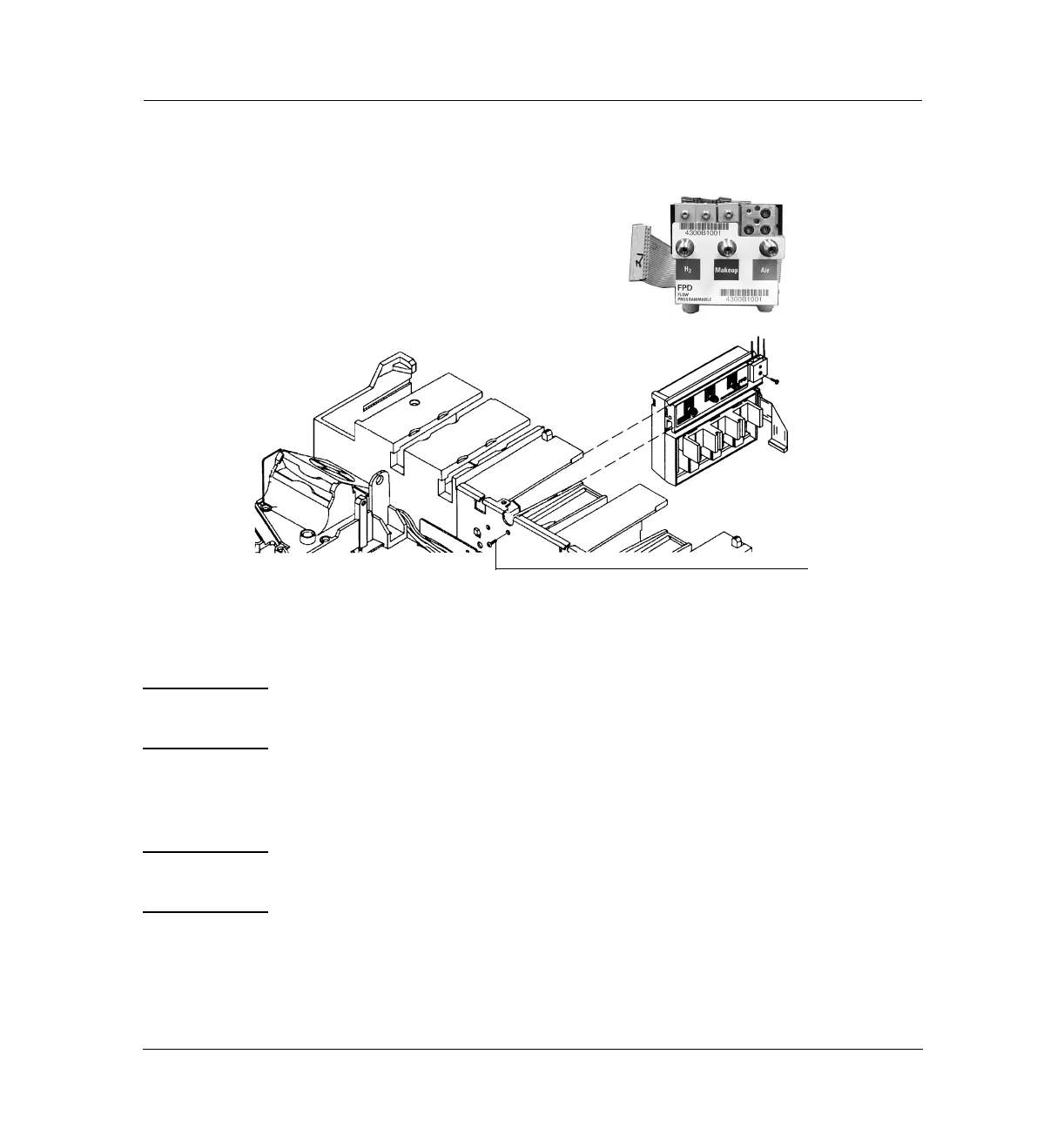

Figure 350-14 Removing an FPD flow manifold
Caution Always hold the Type 2 manifold by its support bracket to avoid damaging
board components.
7. Remove the manifold from its slot.
Installing a Type 2 manifold
WARNING Hydrogen gas is flammable and potentially explosive. Before replacing the
manifold, turn off the hydrogen gas at the source.
Remove the screw
Typ e 1 manifo ld
Typ e 2 ma nifol d
