250 Volatiles Interface
Replacement procedures
12 of 30
Jun 2001
Inlets
Agilent 6890 Gas Chromatograph Service Manual

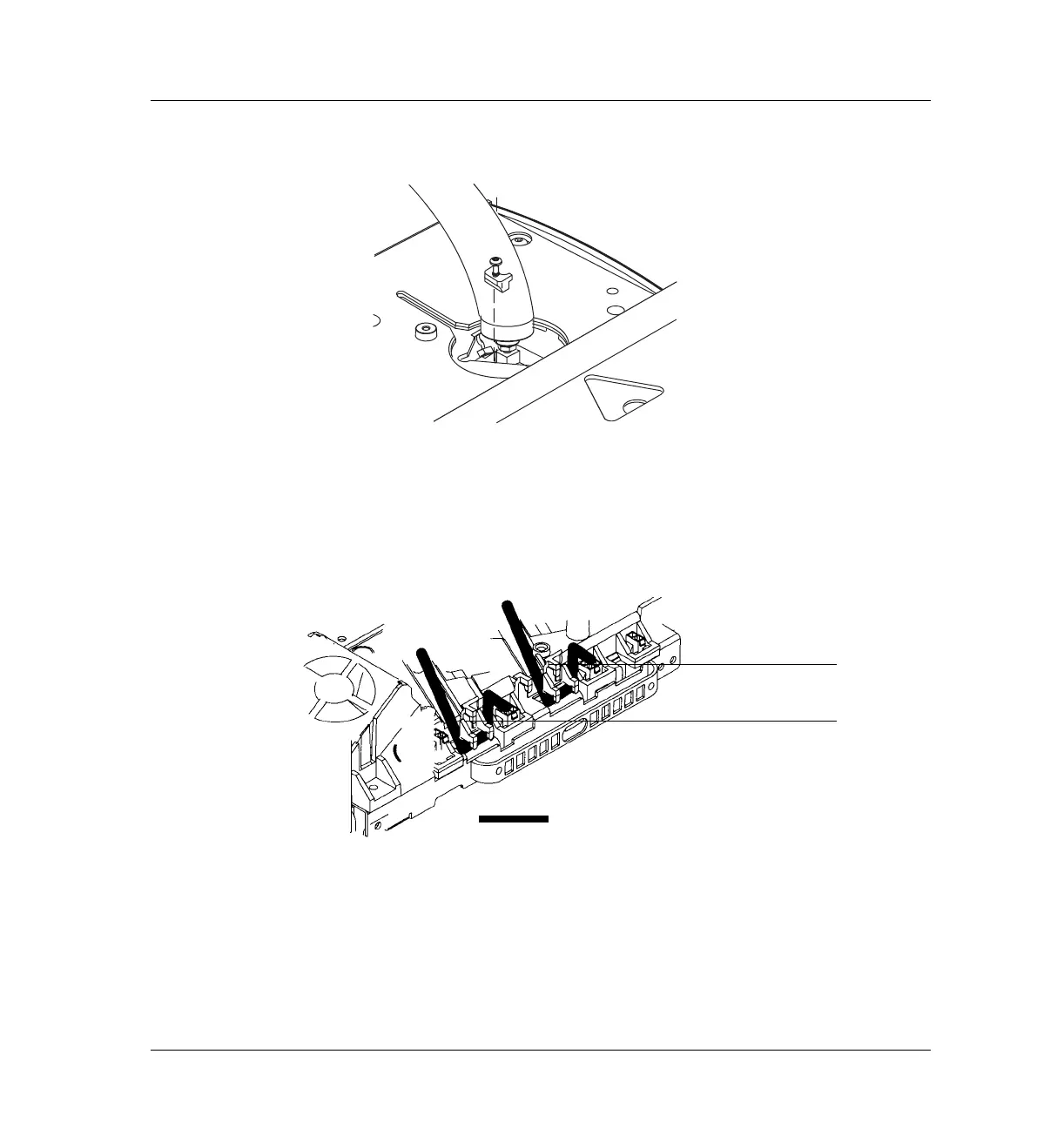

Figure 250-9 Removing the transfer line
2. Remove the heater/sensor wire connector from the GC connection.
Figure 250-10 Heater/sensor cable routing
Front inlet connector
Back inlet connector
= heater/sensor cable routing
