7 of 20
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual
Covers and Fans 410
Replacing the detector top cover

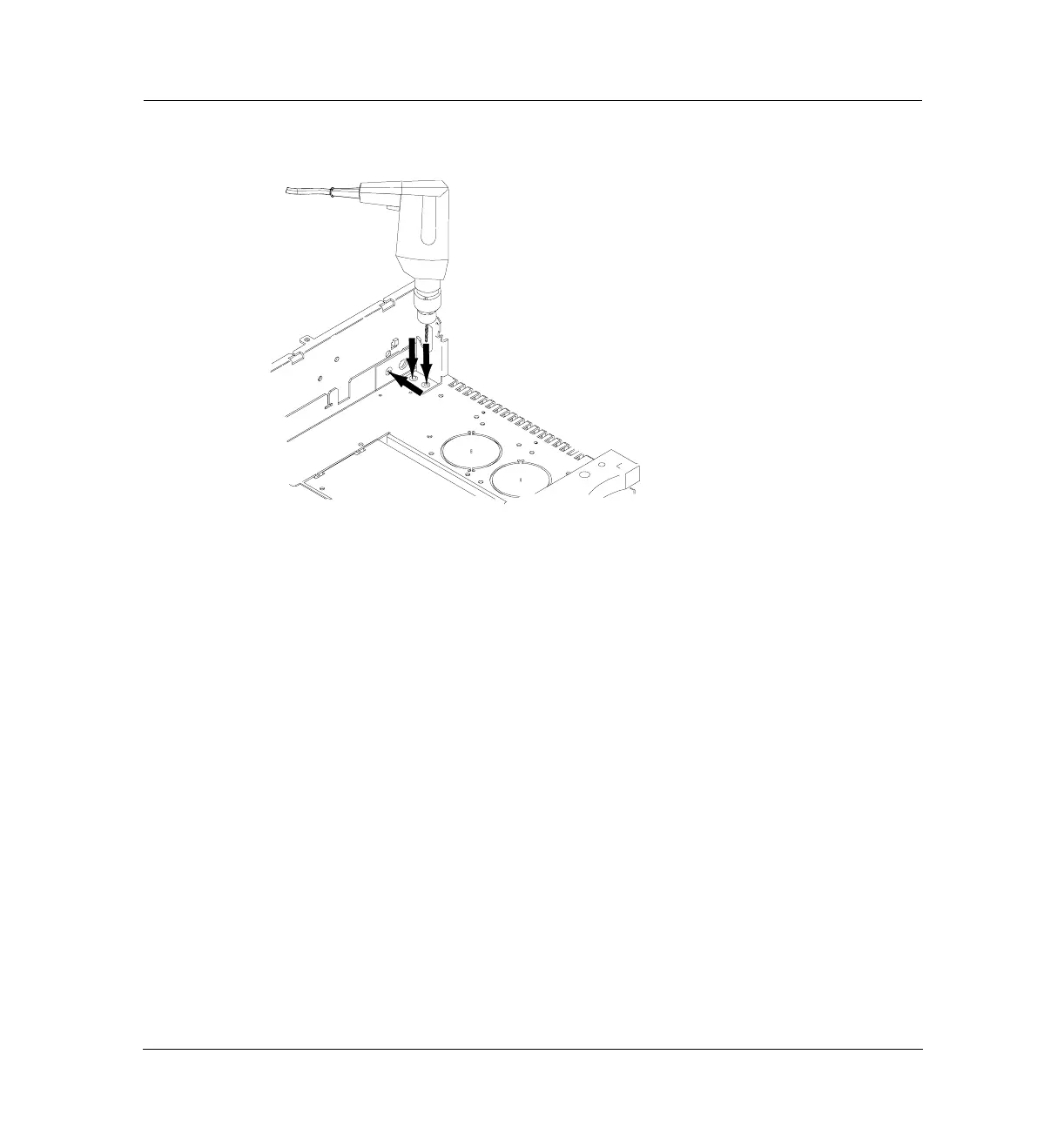

Figure 410-7 Removing the hinge
2. Install the new electronic carrier cover. Holding the detector cover
upright, tilt it to the left, and insert the left hand pin of the into the hole
in the inlet fan cover. Rest the right side hinge on the electronics carrier
cover pin. See Removing the detector cover for more details.
