420 Oven and Temperature Control
Cryo valve installation/replacement
6 of 20
Jun 2001
Mainframe
Agilent 6890 Gas Chromatograph Service Manual

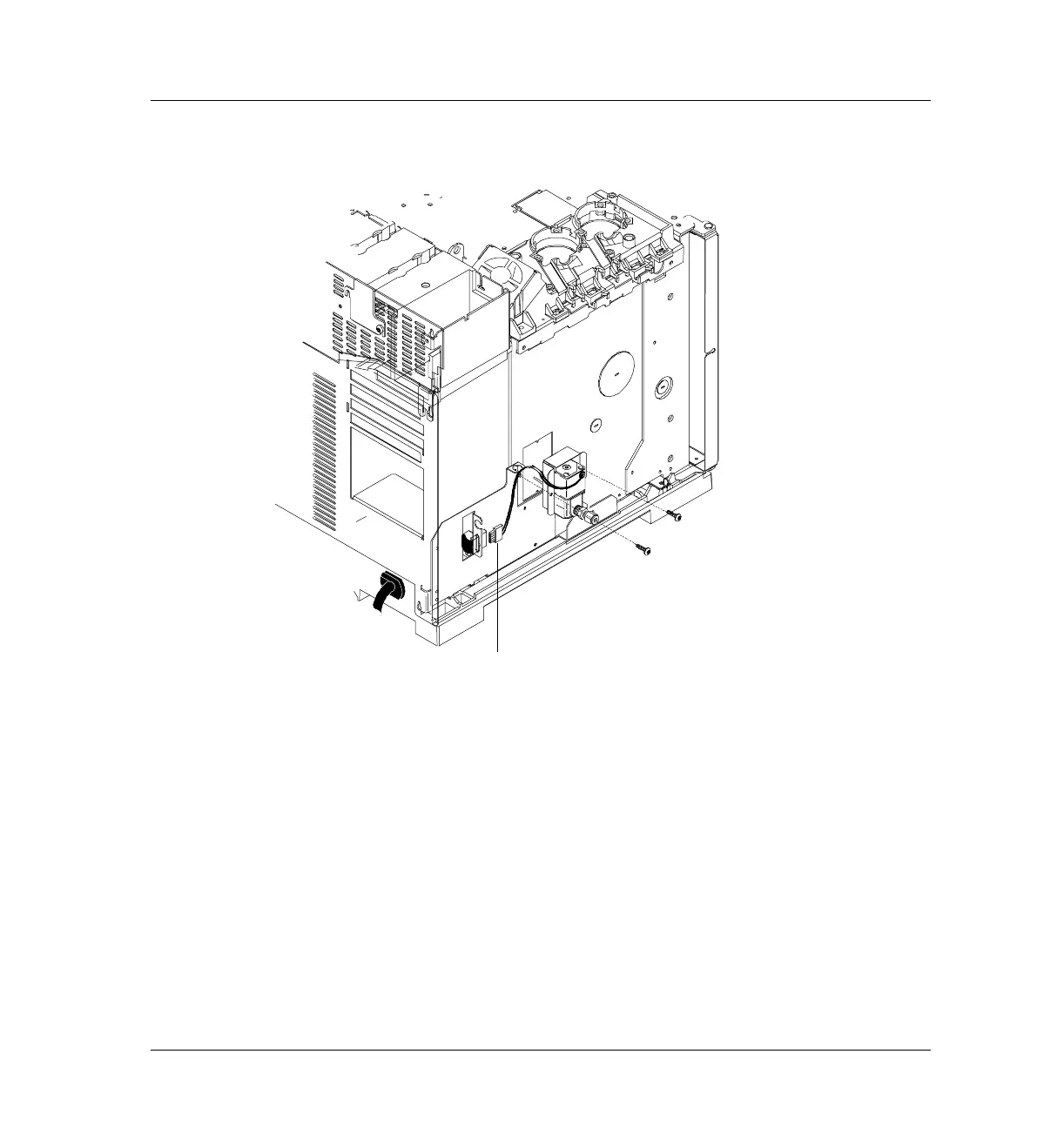

Figure 420-1 Attaching the valve box to the side of the GC (CO
2
valve shown)
5. Plumb the valve to the liquid nitrogen or carbon dioxide source.
6. Plug the cryo valve’s wiring harness into the five pin connector to the
left of the valve.
7. Route the cryo tubing through the cutout in the GC’s side cover and
reinstall the cover.
If a manual inlet carrier is installed, route the cryo tubing out of the slot
in the back of the carrier.
Cryo wiring harness
To Next Page
