5 of 14
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cabling Diagrams, 6890N 1015
6890N GC 3395A/3396B Integrator GC Automatic Liquid Sampler
6890N GC
3395A/3396B Integrator
GC Automatic Liquid Sampler

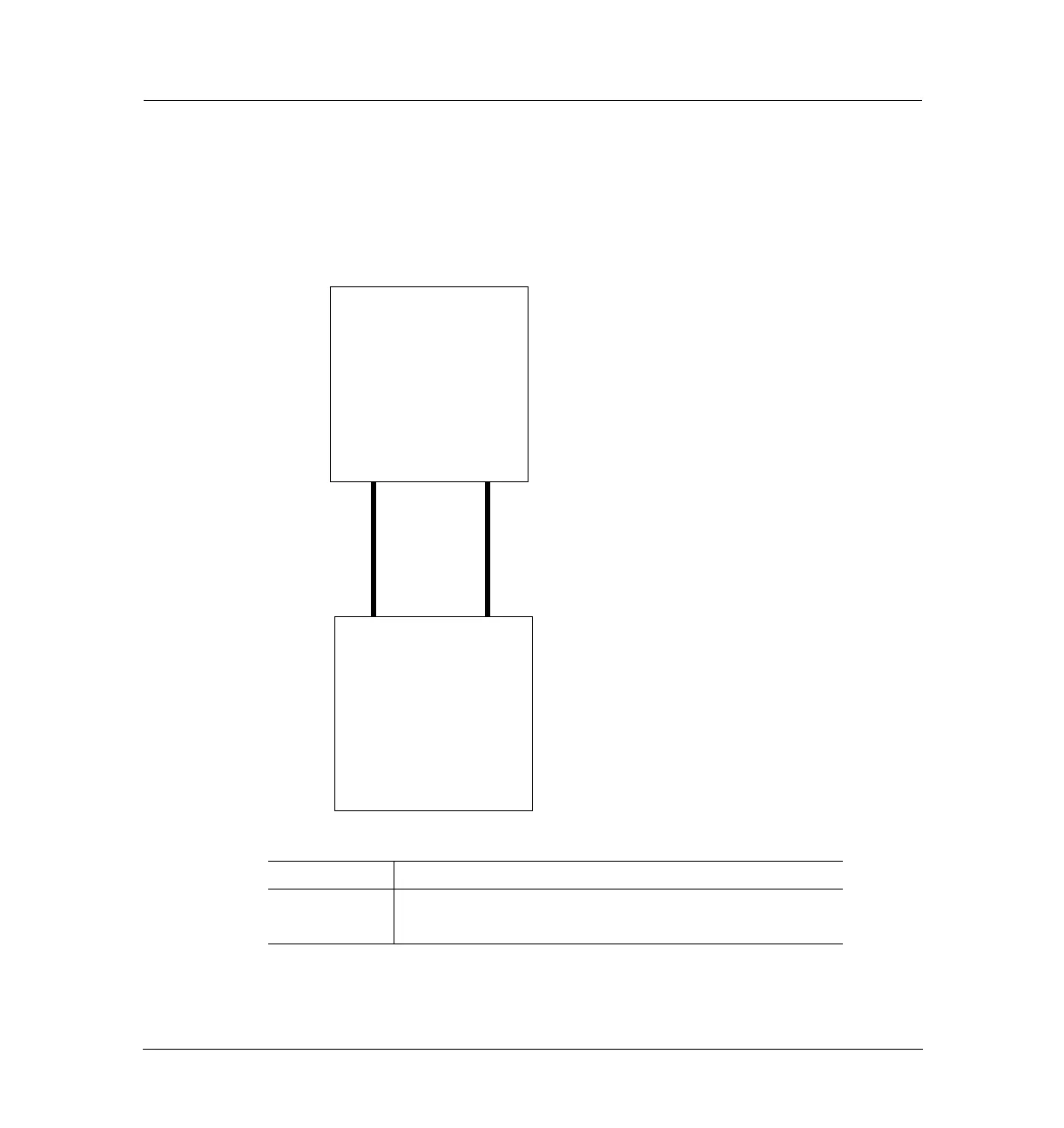

Figure 1015-4
Number Part no. and description
1 03396-61020, 2-m APG remote cable, 9-pin/15-pin
2 G1530-60570, 2-m Analog cable, 6-pin
The 7683 ALS
controller is internal to
the 6890N GC.
The G2613A injector
and G2614A tray
plug into the GC.
6890N GC
2 Analog1 APG Remote
3395A/3396B
Integrator
To Next Page
