1020 Cable Electronics
Analog signal outputs
2 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual

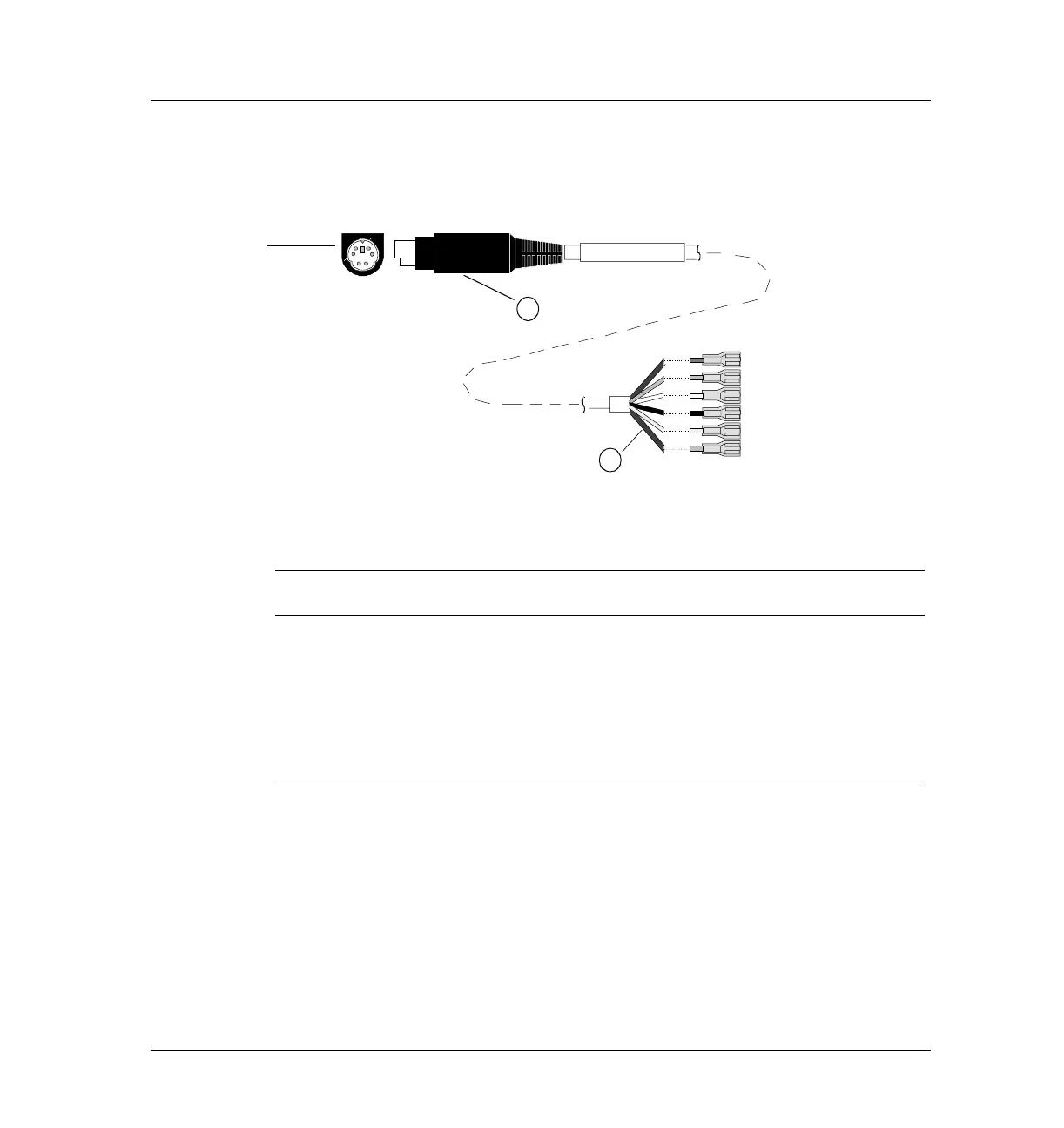

Analog cable — general use
Connector 1 Signal name Connector 2 —
quick disconnects
1 0 to 1 mV (–) Brown
2 0 to 1 V, 0 to 10 V(–) White
3 0 to 1 mV (+) Red
4 1 V (+) Black
6 10 V (+) Blue
Shell Ground Orange
56
3
1
2
4
G1530-60560
Shell
Part no. G1530-60560
1
2
