Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cable Electronics 1020
Modem/RS-232C

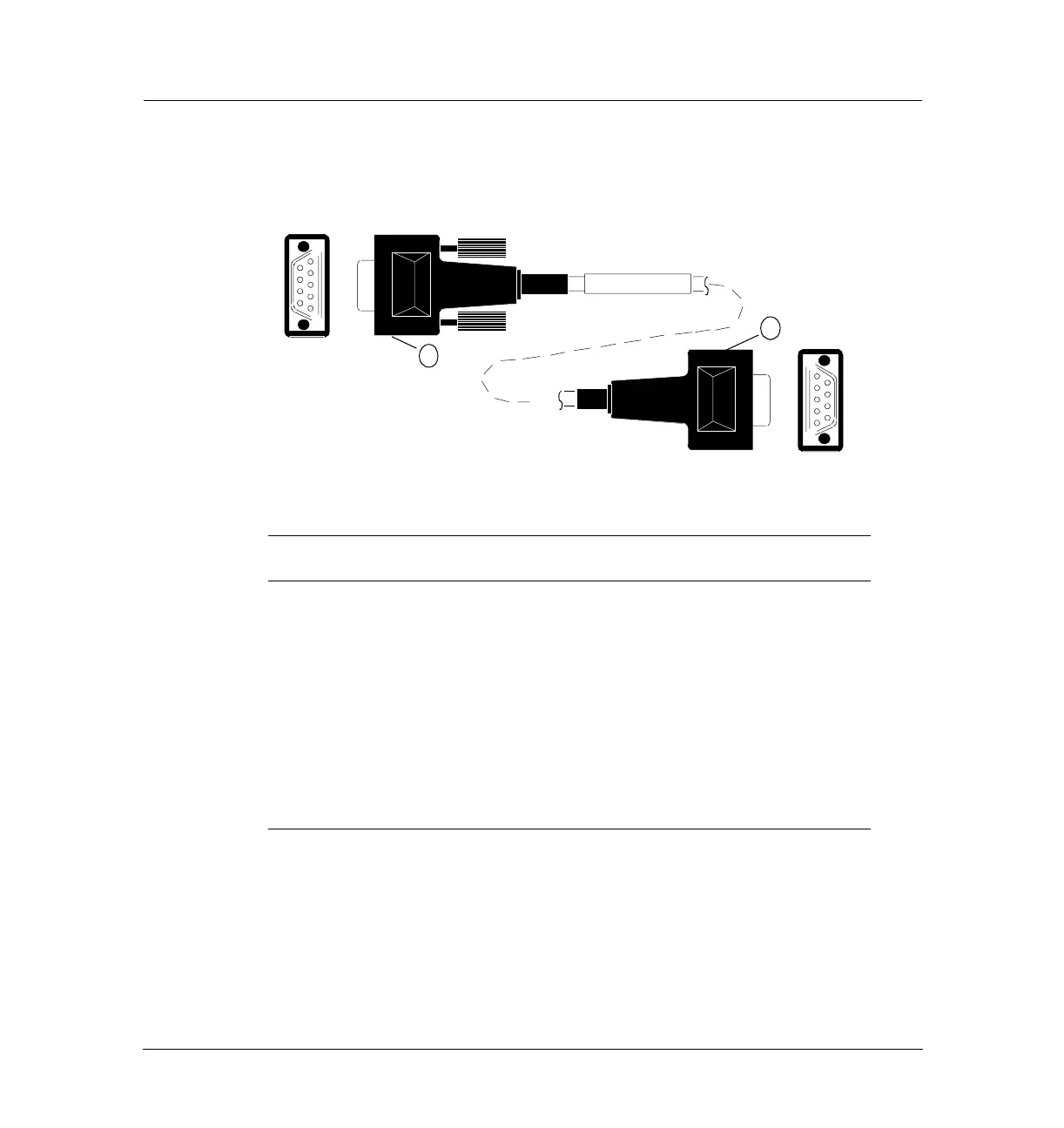

Cable pinouts, 6890 GC to Modem, 9 pin/9-pin
Connector 1 — 9 pin
(female)
Signal name
Connector 2 — 9 pin
(male)
1 DEC 1
2 RxD 2
3 Tx D 3
4 DTR 4
5 GND 5
6 DSR 6
7 RTS 7
8 CTS 8
9 RI (Unused) 9
1
5
6
9
9
6
5
1
G1530-61120
Part no. G1530-61120
