13 of 18
Jun 2001
Cabling Configuration and Electronics
Agilent 6890 Gas Chromatograph Service Manual
Cable Electronics 1020
Remote
Remote

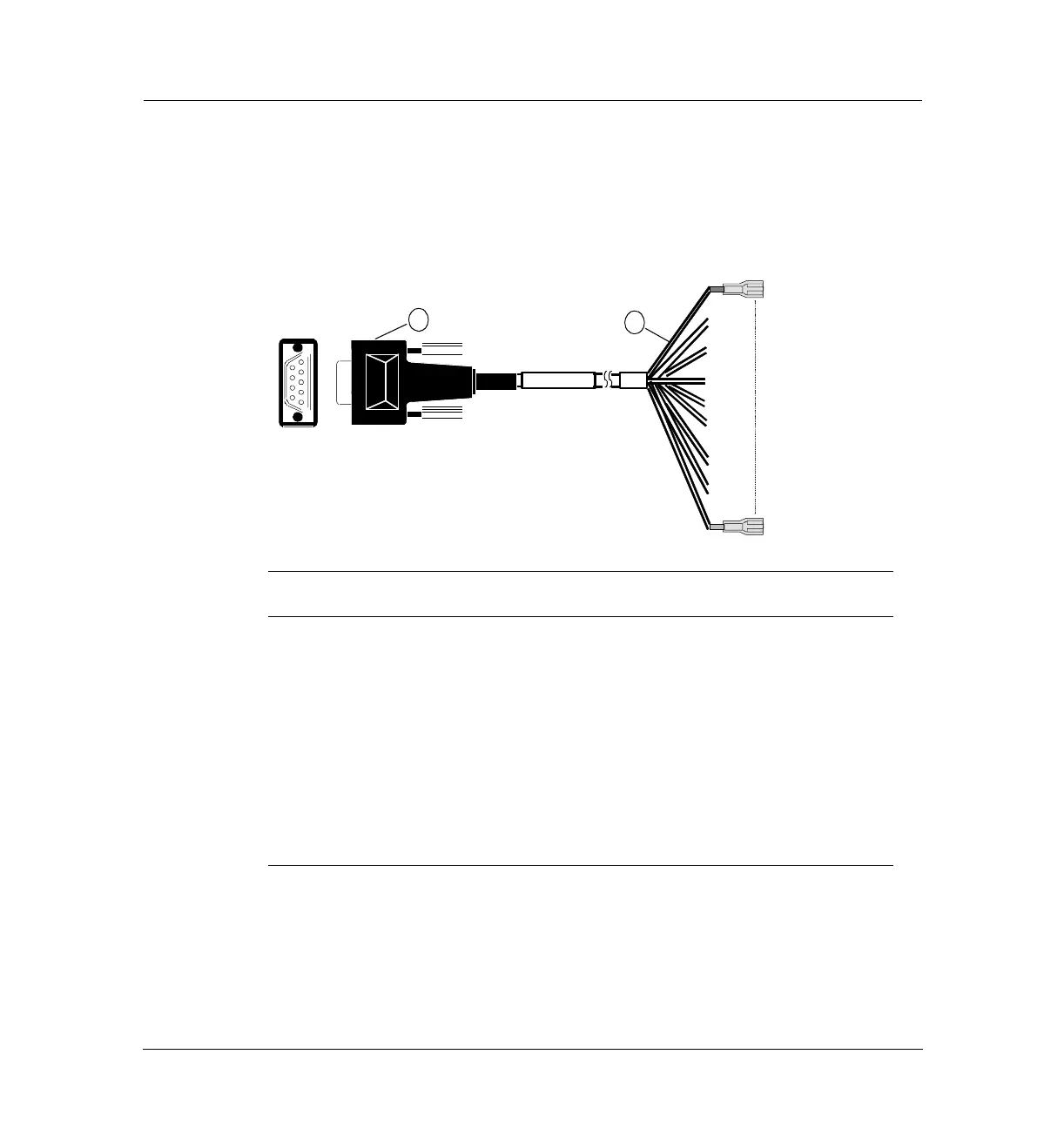

Cable pinouts, remote start/stop, general use
Connector 1
9 pin (male)
Signal name
Connector 2
(spade lugs)
1 GND Black
2 Prepare (low true) White
3 Start (low true) Red
4 Shut down (6890A/Plus); start relay (6890N) Green
5 Reserved (6890A/Plus); start relay (6890N) Brown
6 Power on (6890A/Plus); no connection (6890N) Blue
7 Ready (high true input) Orange
8 Stop (low true) Yell ow
9 Start request (6890A/Plus); no connection (6890N) Violet
6
9
1
5
35900-60670
Part no. 35900-60670
2
1
