Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Inlets 1310
Programmable cool on-column EPC pneumatic module
Programmable cool on-column EPC pneumatic module
0 to 100 psig (part no. G1545-60500)
For diagram of screw and O-ring placement in pneumatic modules see
Figure 1310-7 on page 15 of this section.

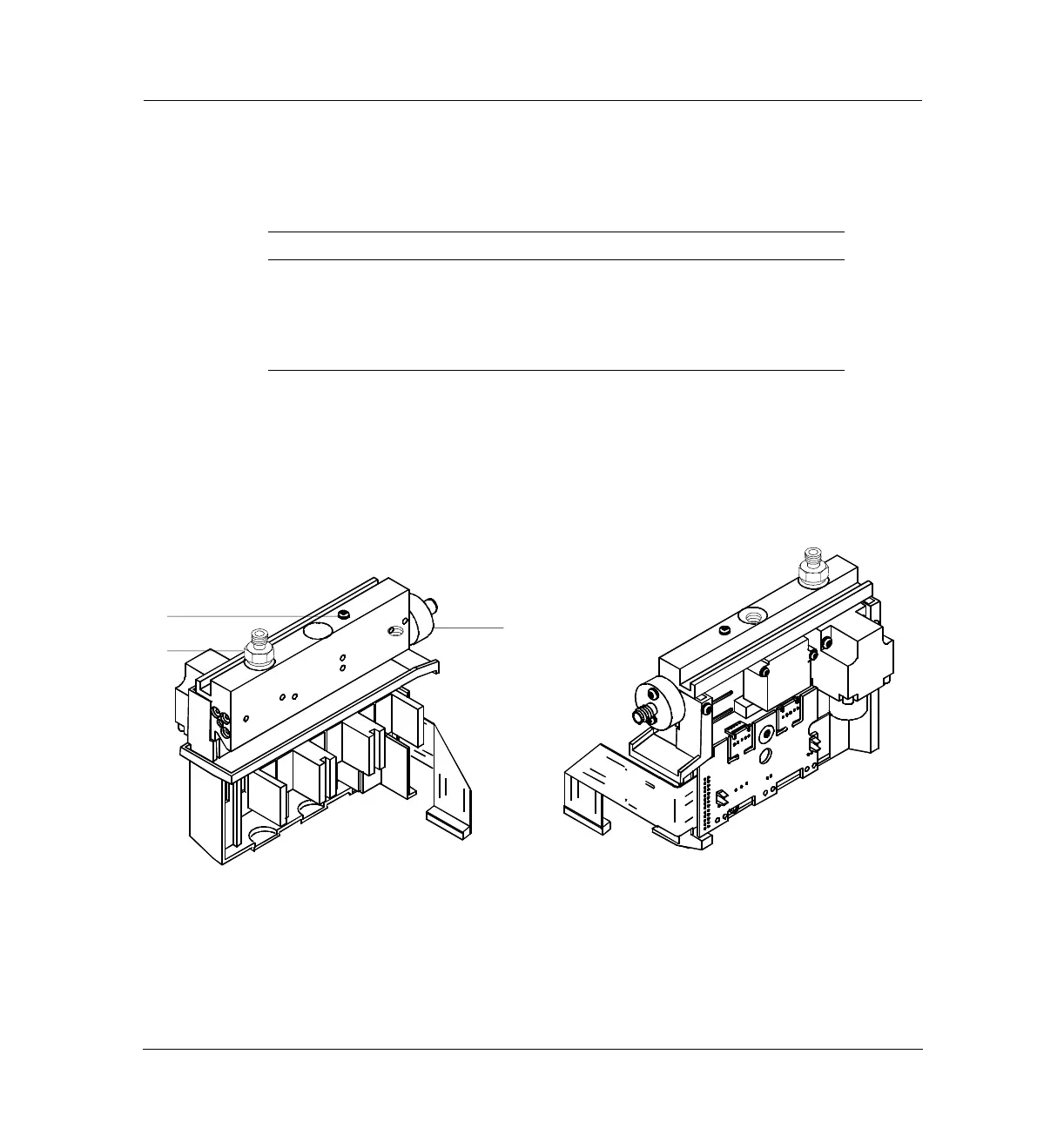

Figure 1310-10 Programmable cool on-column pneumatic module
Description Part no. Qty.
1. Male connect 1/8-inch Swagelok 0100-1346 1
2. Inlet block fitting G1543-20610 1
3. EPC valve replacement kit G1531-60610 1
4. Screws, inlet block, M3 × 12 mm, not shown 0515-1084
1
2
Rear viewFront view
3
