1310 Inlets
Pneumatics control module
34 of 36
Jun 2001
Illustrated Parts Breakdown
Agilent 6890 Gas Chromatograph Service Manual
Pneumatics control module
(part no. G2317-65500)

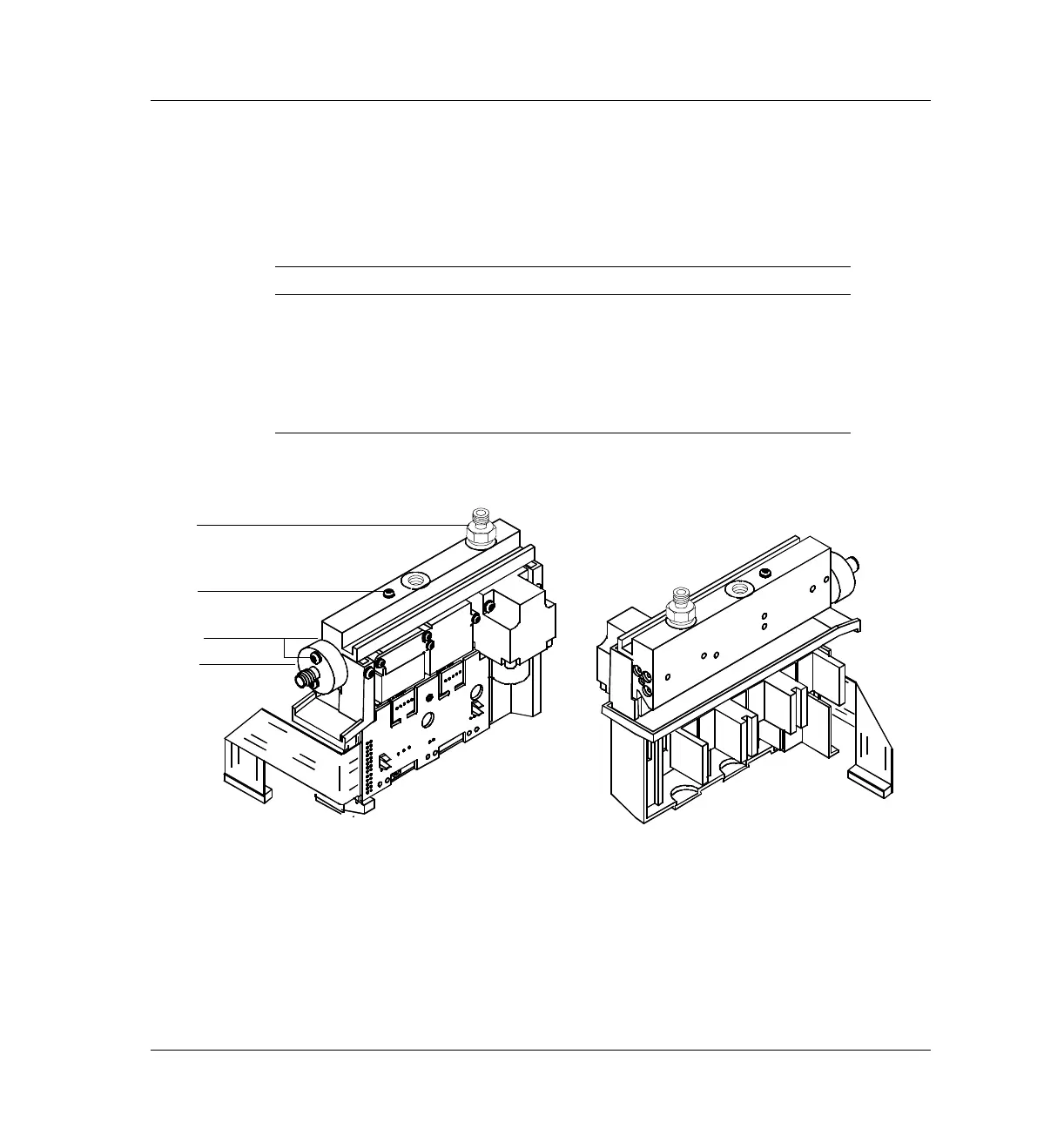

Figure 1310-18 Pneumatics control module
Description Part no. Qty.
1. 1/8-inch SwageLok male connector, SAE, brass G1543-80030 1
2. 100 PSIG inlet supply fitting G1543-20510 1
3. Screw, M4 × 45 mm, Torx T-20 0515-2484 1
4. O-rings,.239 ID (Order part no. 5180-4182, 12/pkg) 1
NS PCM gang weldment G2319-80500 1
1
3
2
Front view Rear view
4
