Component side of board
The following measurements use the large metal shield as the low voltage reference. The instrument should be turned
on, and the light below the power switch should be green.

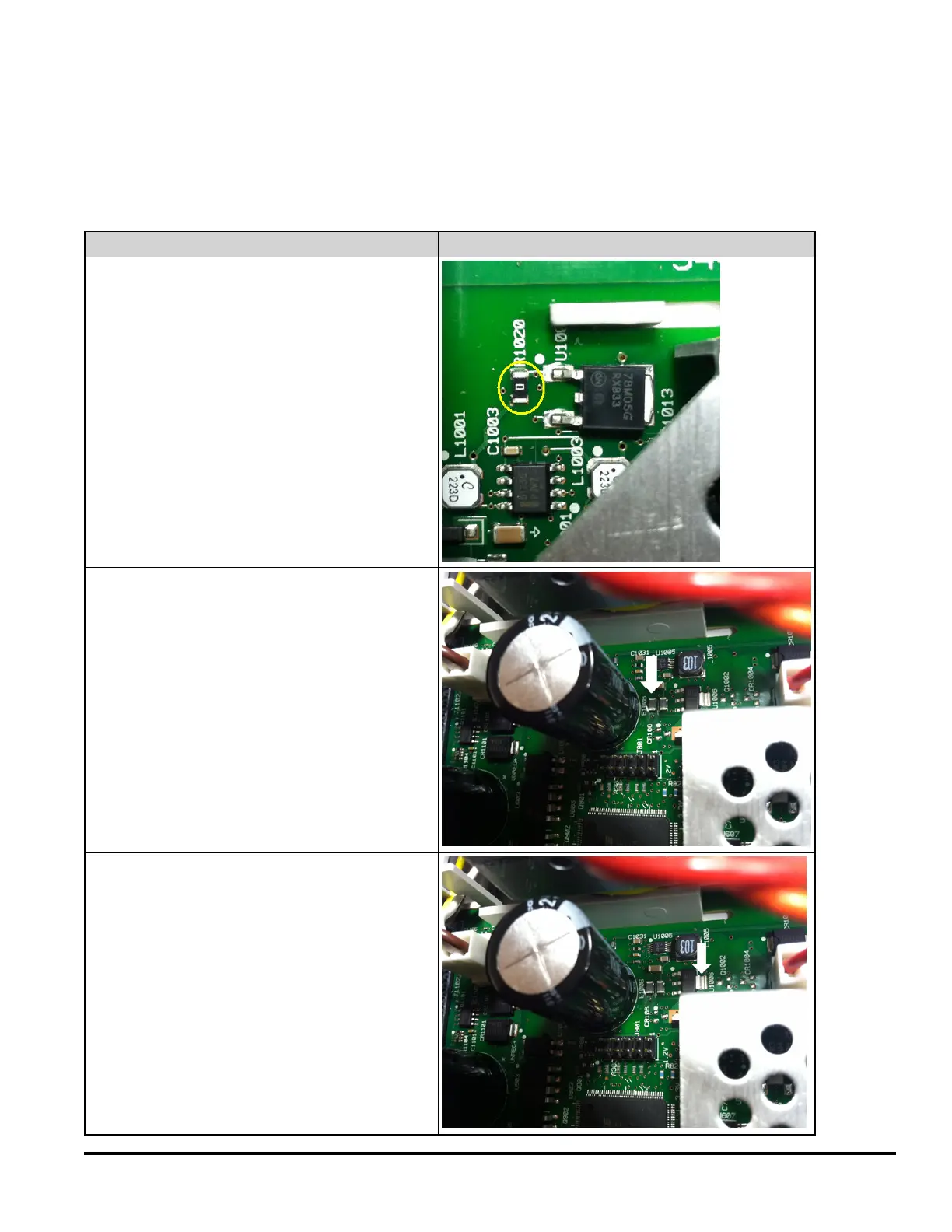

Refer to the detailed images in the table below for exact location information.
Pin Location Detail
R1020 (either end)
10 V ± 20%
E1006 (either end)
3.3 V ± 5%
U1006 (large tab on right side as shown in picture)
1.2 V ± 5%
Agilent Truevolt Series DMM Operating and Service Guide 291
