General Disassembly Procedure
1. Turn off the power and remove all measurement leads and other cables, including the power cord, from the
instrument before continuing.

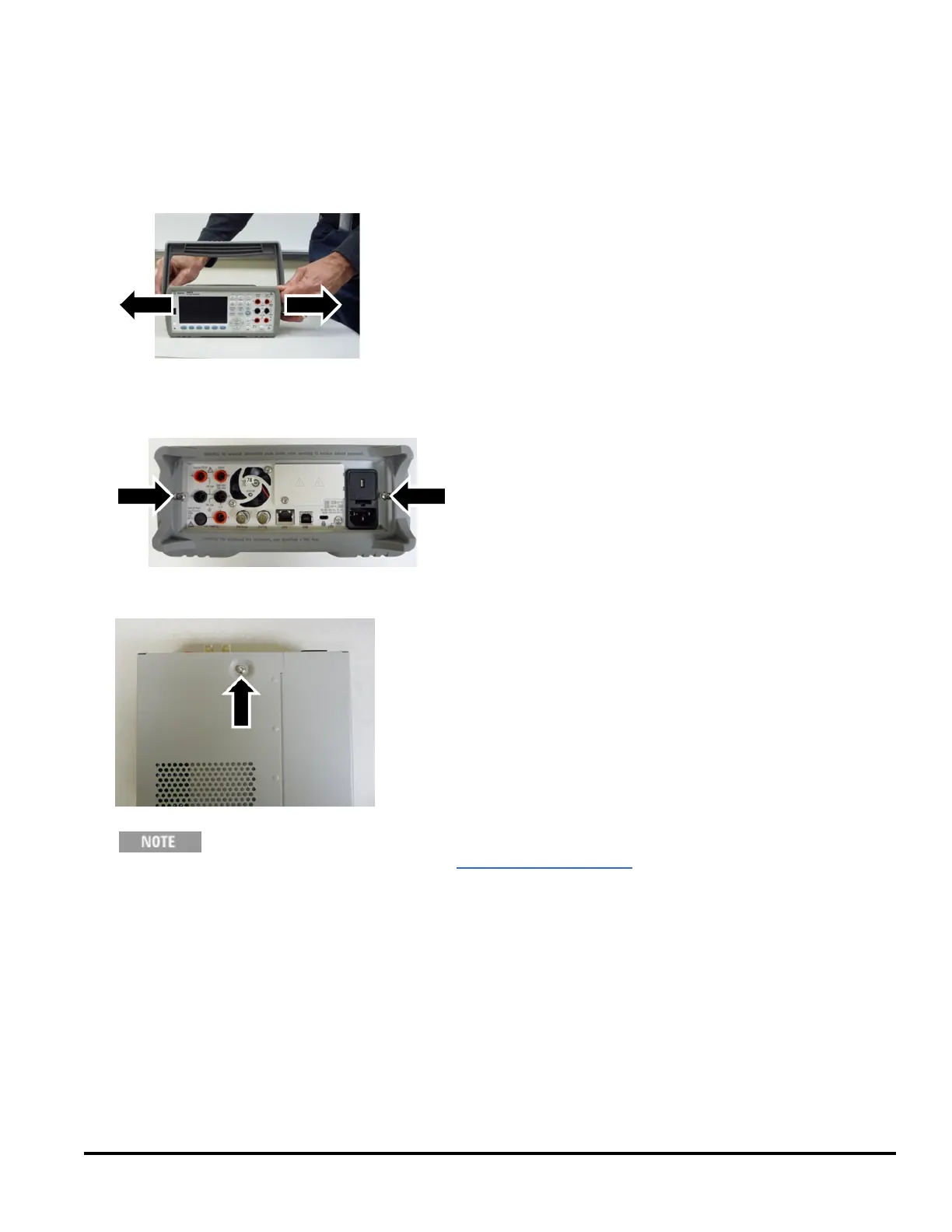

2. Rotate the handle to the upright position and remove it by pulling outward where it attaches to the case.
3. Pull off the front rubber bumper.
4. Unscrew the two captive screws in the rear bezel and remove the rear bezel and rubber bumper.
5. Remove the screw on the bottom of the instrument and place it in a safe location for re-assembly. Slide off the
instrument cover.
At this point, the instrument it sufficiently disassembled for power supply troubleshooting purposes.
You could also change the battery or override the security code at this point. If you need to
disassemble the front panel, continue with the steps shown below.
Agilent Truevolt Series DMM Operating and Service Guide 299
