Instrument Control Tab
The second tab takes you to the main instrument control screen. The upper left corner of the screenallows you to
either monitor the instrument (Observe Only) or control the instrument (Allow Full Control).

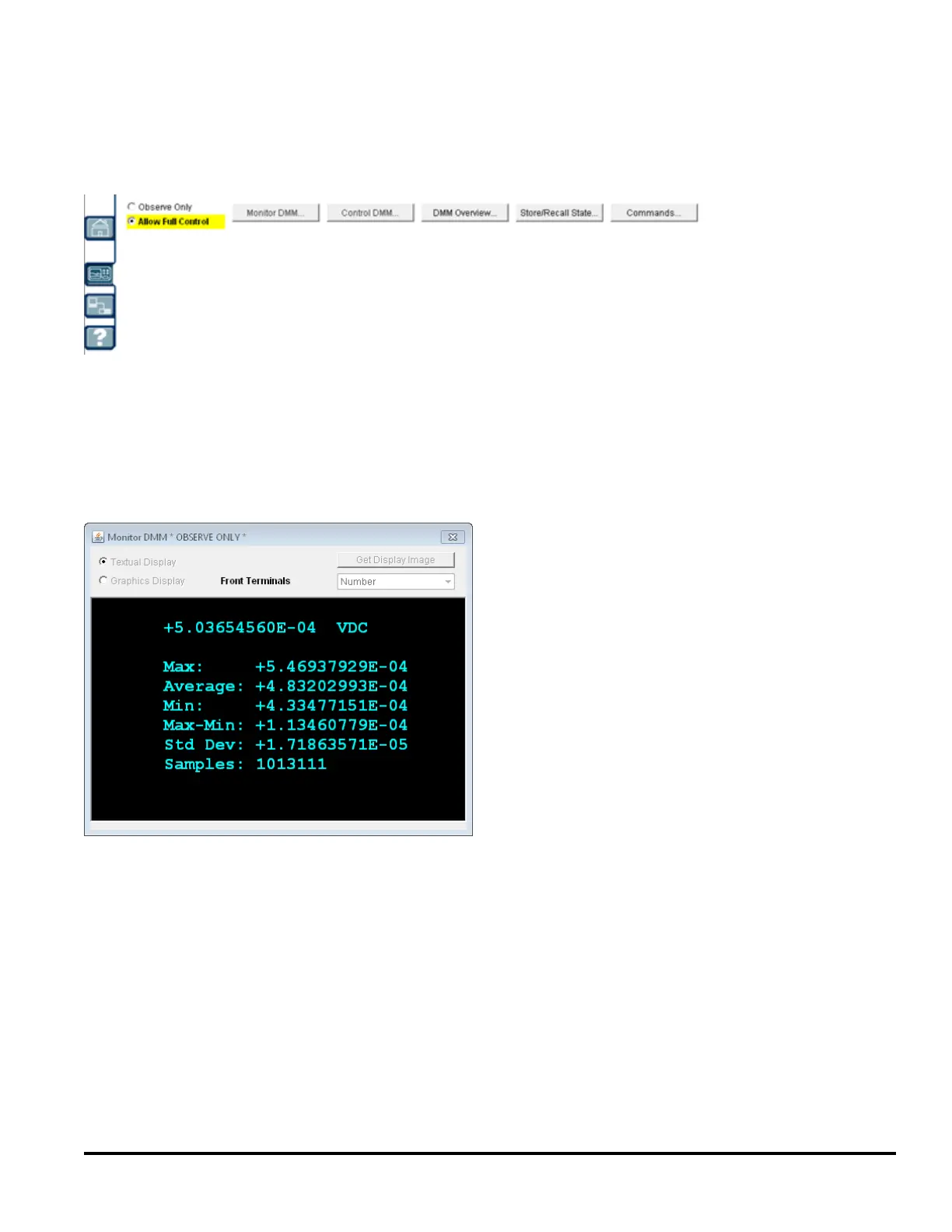

The five buttons along the top of the screen open the following five windows.
Monitor DMM...
This window shows DMM measurements, either as numbers or as shown on the instrument's graphical display (trend
chart, histogram, and so on). If you select the Graphics Display radio button, press Get Display Image to update
the graphical display.
Control DMM...
This window configures the instrument and takes measurements. The Allow Full Control radio button must be
enabled, as described above.
Agilent Truevolt Series DMM Operating and Service Guide 81
