98
Chapter 9:
Various Settings (Q-Link Functions, Setup Mode)
Chapter 9:
Various Settings (Q-Link Functions, Setup Mode)
This chapter describes Q-Link functions and the operations in Setup mode used for the settings related to DPS16
operations.
Q-Link Functions
The DPS16 provides Q-Link functions that enable you to set various parameters of the DPS16 while the main
screen is displayed. This section explains the functions and operations of Q-Link functions.
Basic operations of Q-Link functions

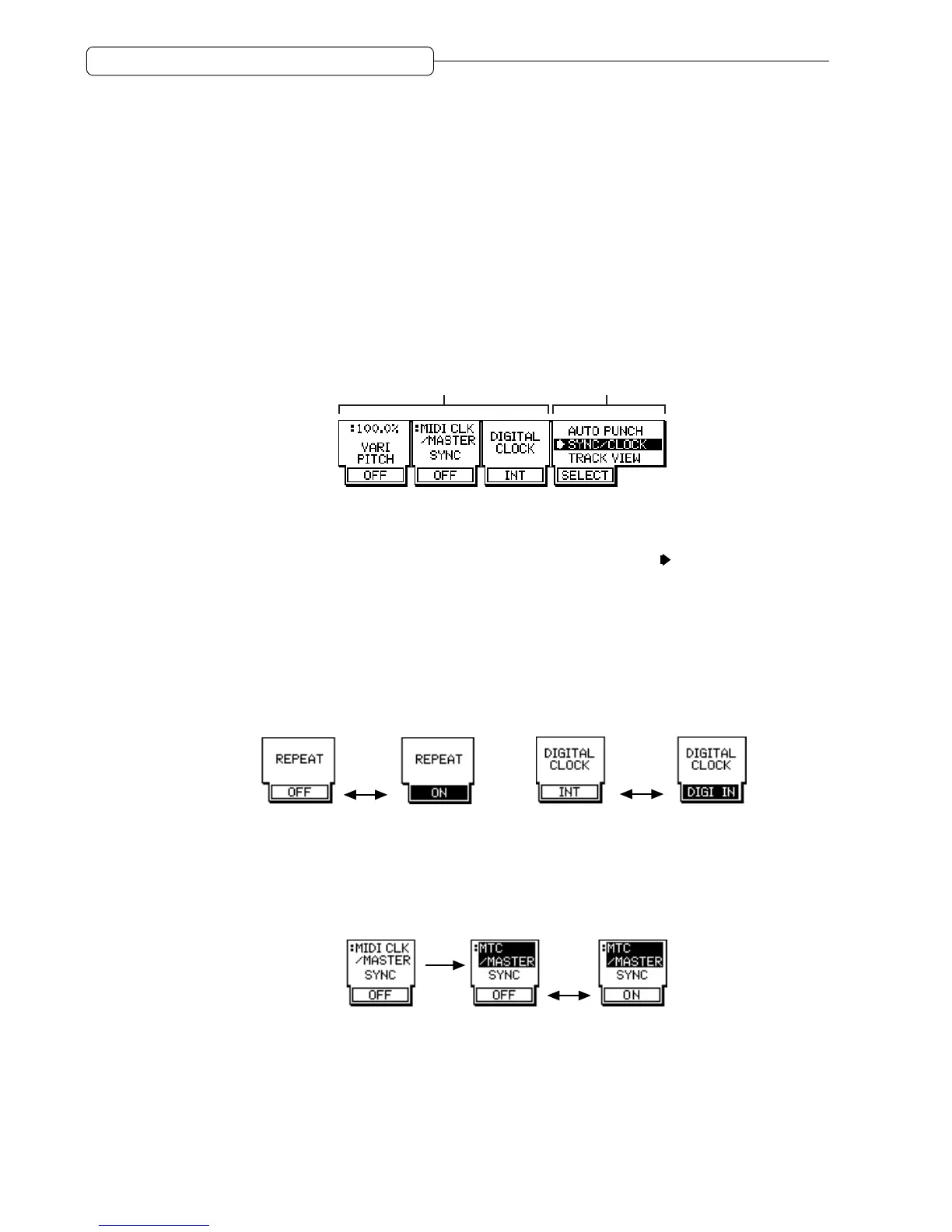

Press the [MAIN SCREEN] key to access the main screen. The following fields appear in the positions of [F1]–[F4]
keys in the lower left area.
[F1] [F2] [F3] [F4]
1
2
1 This field enables you to select a function (a category of setting items). Press the [F4] key to move the
cursor to the field and turn the [JOG] wheel to select a function. (An arrow “ ” appearing on the left in
the field indicates the currently selected function.)
2 This field indicates various parameters and functions. Parameters and functions assigned to the [F1]–
[F3] keys vary depending on the function you selected in field (1). The following are three methods of
setting and operating the parameters and functions:
• Press the corresponding function key to switch the parameter on and off or toggle between two
values.
[F1]
[F1]
Press a function key
to switch on or off.
[F4]
[F4]
Press a function key to toggle
between two values.
• Move the cursor to the field and turn the [JOG] wheel to change the value. Also, press the corre-
sponding function key to turn the parameter on and off.
[F2] [F2] [F2]
Move the cursor to
change the value.
Press a function key
to switch on or off.
To Next Page
