6
Chapter 1: Overview of the DPS16

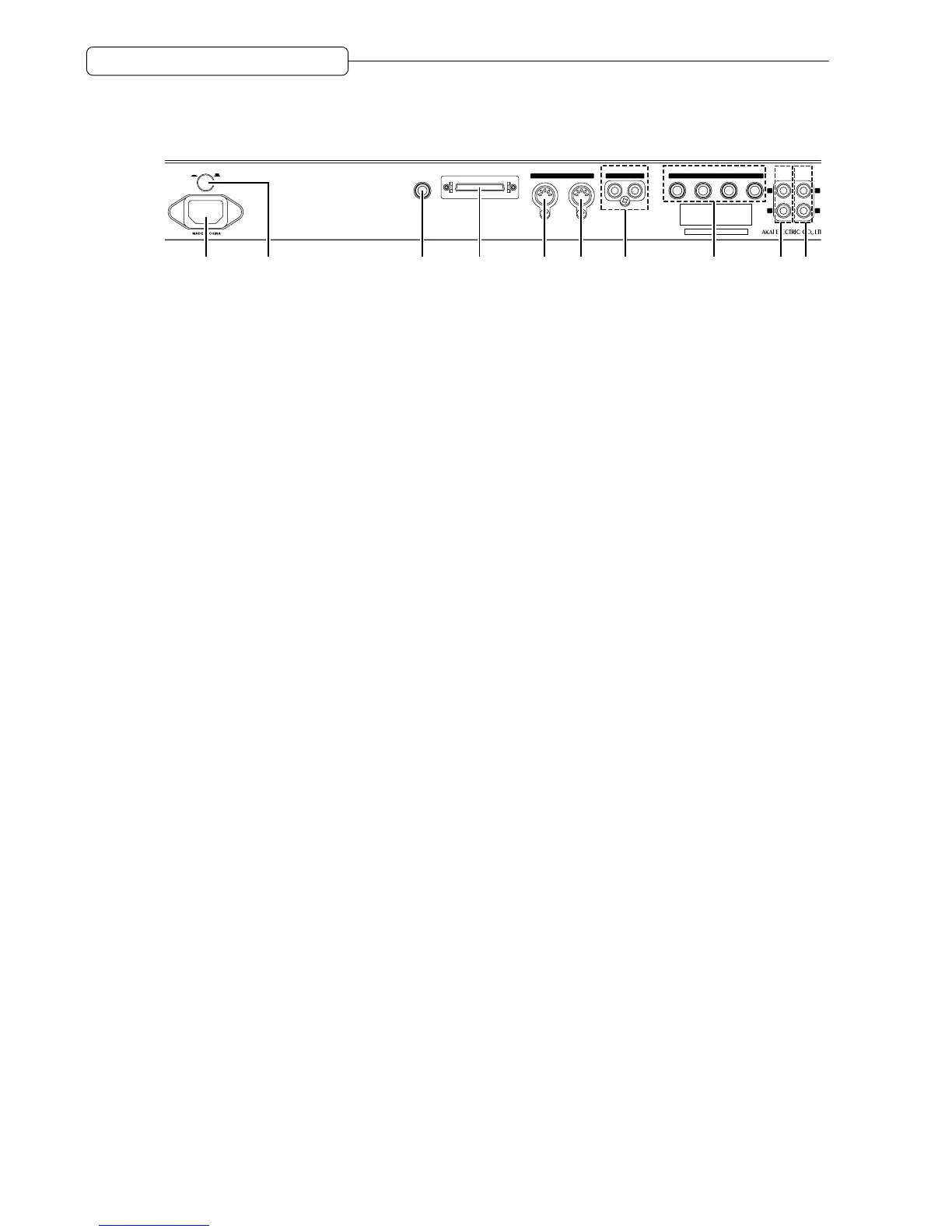

Rear Panel
MASTER
OUT
MONITER
OUT
L
R
L
R
AUX SEND
MODEL NUMBER DPS16
1234OUT IN
DIGITAL
OUT/
THRU
MIDI
SCSIFOOT SW.
POWER
ON OFF
IN
J 8
7
6
5 4
3 2
1
9
1 MONITOR OUT jacks L/R
These jacks output a monitoring signal, which is usually identical with the signal output from the MASTER
OUT jacks. If the [SOLO] key is turned on, signals from soloed channels will be output.
2 MASTER OUT jacks L/R
These jacks output a stereo signal that is a mix of each channel (TRACK MIX channels + INPUT MIX
channels + Effect return 1–4) of the mixer section.
3 AUX SEND 1–4 jacks
These jacks output a signal sent from each channel of the mixer section (TRACK MIX channels + INPUT
MIX channels) to AUX send 1–4.
4 DIGITAL IN/OUT jacks
These coaxial jacks transmit and receive audio signals to and from an external digital device, such as a DAT
recorder or an MD recorder.
5 MIDI IN connector
This connector receives sync signals and control signals from an external MIDI device, such as a MIDI
sequencer.
6 MIDI OUT/THRU connector
This connector transmits sync signals and control signals to an external device, such as a MIDI sequencer. If
you change the setting for this connector on the DPS16, this connector functions as a MIDI THRU connector
that outputs information received at the MIDI IN connector as it is.
7 SCSI connector
This connector is used to connect an external hard disk, MO drive, or CD-R drive.
8 FOOT SW. (foot switch) jack
This jack is used to connect a foot switch to control the Punch In/Out operation and playback/stop operation
with your foot.
9 POWER switch
This switch turns on/off the power to the DPS16.
J Power connector
Connect the included power cable here.
