Chapter 2: Recording on the DPS16
Chapter 2: Recording on the DPS16
This chapter describes the basic operations of the DPS16, including recording preparation, recording the first part,
overdubbing, and mixing down to a master recorder.
Connections

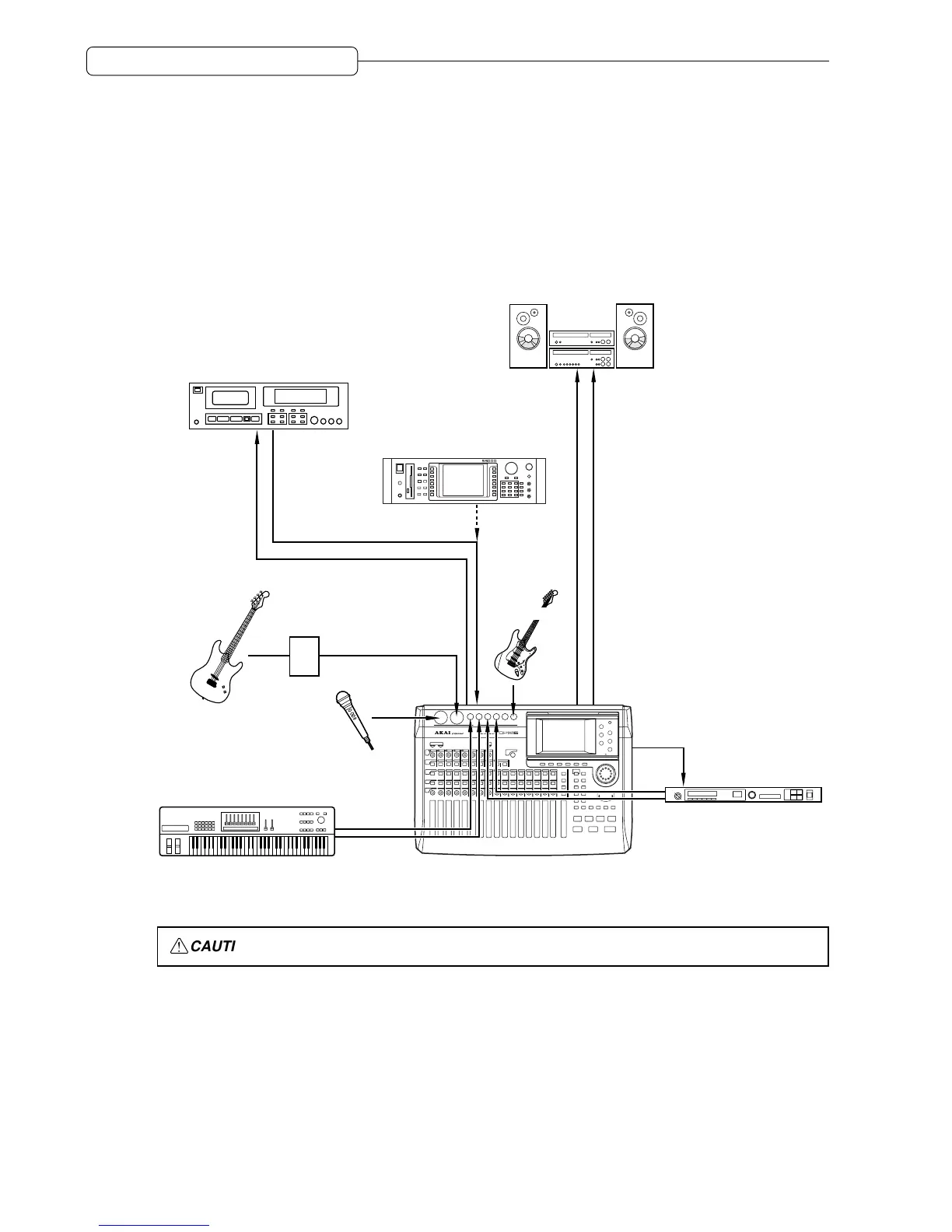

The diagram below is an example of the basic connections for recording on the DPS16.
SHUTTLEJOG
master recorder
(DAT recorder/MD recorder)
DIGITAL
IN
DIGITAL
OUT
DIGITAL OUT
DIGITAL
OUT
AUX SEND 1-4
DIGITAL
IN
MONITOR
OUT
LINE IN
external signal
processor
DPS16
sampler
monitor system
dynamic
microphone
electric base
electric guitar
direct box
synthesizer/rhythm machine
55000
CAUTION :
Make sure that you turn off the power to all equipment before making connections.
