Chapter 9:
Various Settings (Q-Link Functions, Setup Mode)
Time Display function
This function enables you to set the time counter and BBC counter displayed on the main screen.

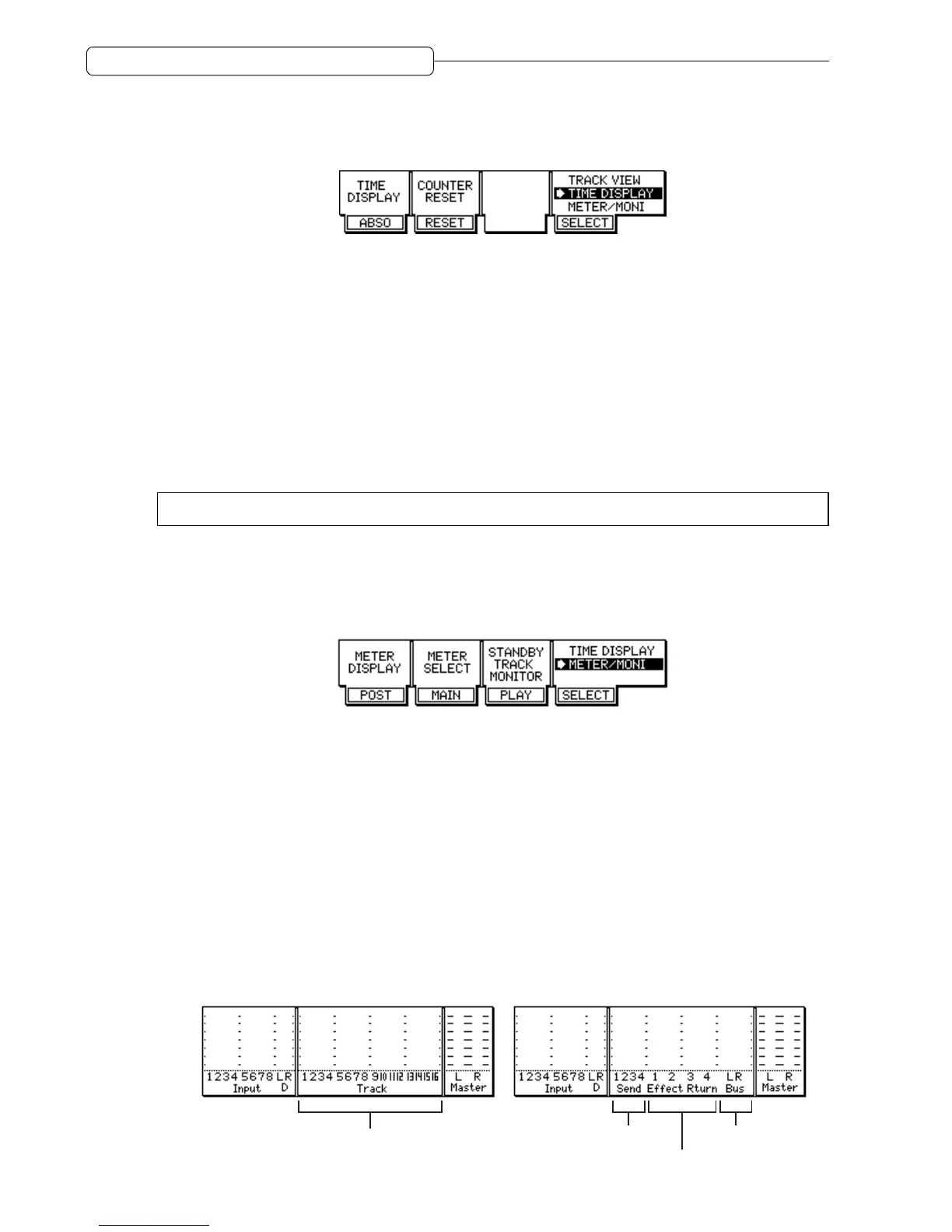

[F1] [F2] [F3] [F4]
■ [F1] key/TIME DISPLAY parameter
This parameter enables you to select absolute time or relative time for the time counter. Use the [F1] key to
toggle between two options (ABSO/RELA).
• ABSO (absolute time) .............. Absolute time referenced to the DPS16’s internal zero point
(00:00:00:00.00) (default setting).
• RELA (relative time) ................ Relative time referenced to any zero point you set (00:00:00:00.00).
■ [F2] key/COUNTER RESET
This function resets the relative time value, referenced to the current point as the zero point. Press the [F2] key
to change the time counter display to relative time (RELA). The time value will be reset to 00:00:00:00.00.
➸
NOTE :
No parameters or functions are assigned to the
[F3]
key.
Meter/Monitor function
This function enables you to set the parameters related to the level meters shown on the main screen, and monitor-
ing signals.
[F1] [F2] [F3] [F4]
■ [F1] key/METER DISPLAY parameter
This parameter enables you to select whether the level meters for the INPUT MIX channels (1–8, DL/DR) and
TRACK MIX channels (1–16) indicate a pre- or post-fader signal level. Use the [F1] key to toggle between
pre-fader (PRE) and post-fader (POST).
■ [F2] key/METER SELECT parameter
This parameter enables you to select a signal source indicated by the center level meters. Use the [F1] key to
toggle between two settings (MAIN and SEND).
• MAIN ............................The meters display the levels of TRACK MIX channels (1–16) (default setting).
• SEND ............................The meters display the signal levels of AUX sends (Send) 1–4, Effect return
1–4, and ping-pong bus (BUS) L/R.
MAIN settings SEND settings
TRACK MIX channels 1-16
AUX send 1-4 Ping-pong bus L/R
Effect return 1-4
To Next Page
