Chapter 1: Overview of the DPS16
Y Edit point keys ([IN] key/[OUT] key)
These keys are used to store IN/OUT points that are used to specify the range of the Auto Punch In/Out
function and Edit function.
Z Point play key ([IN-OUT] key/[TO] key/[FROM] key)
These keys are used to play back data between the IN and OUT points or to play for a specified duration
around the current position of the DPS16.
a [UNDO] key
This key is used to cancel the recording or editing operation you just performed. When you press this key right
after you perform recording or editing, the previous status is restored and the LED above the [UNDO] key
lights up (Undo). Pressing the [UNDO] key again restores the status obtained when you performed the record-
ing or editing operation, and the LED turns off (Redo). The range of the Undo level parameter (to set how
many previous operations can be restored via the [UNDO] key) is 0 to 250. (See page 33.)
b Locate keys ([GO TO] key/[MEMORY] key)
These keys are used to store the locate point (the position information in a song) or to move to any locate
point.
c Transport buttons
These buttons are used to control the transport operation, including recording, playback, stopping, etc. (See
page 40.)

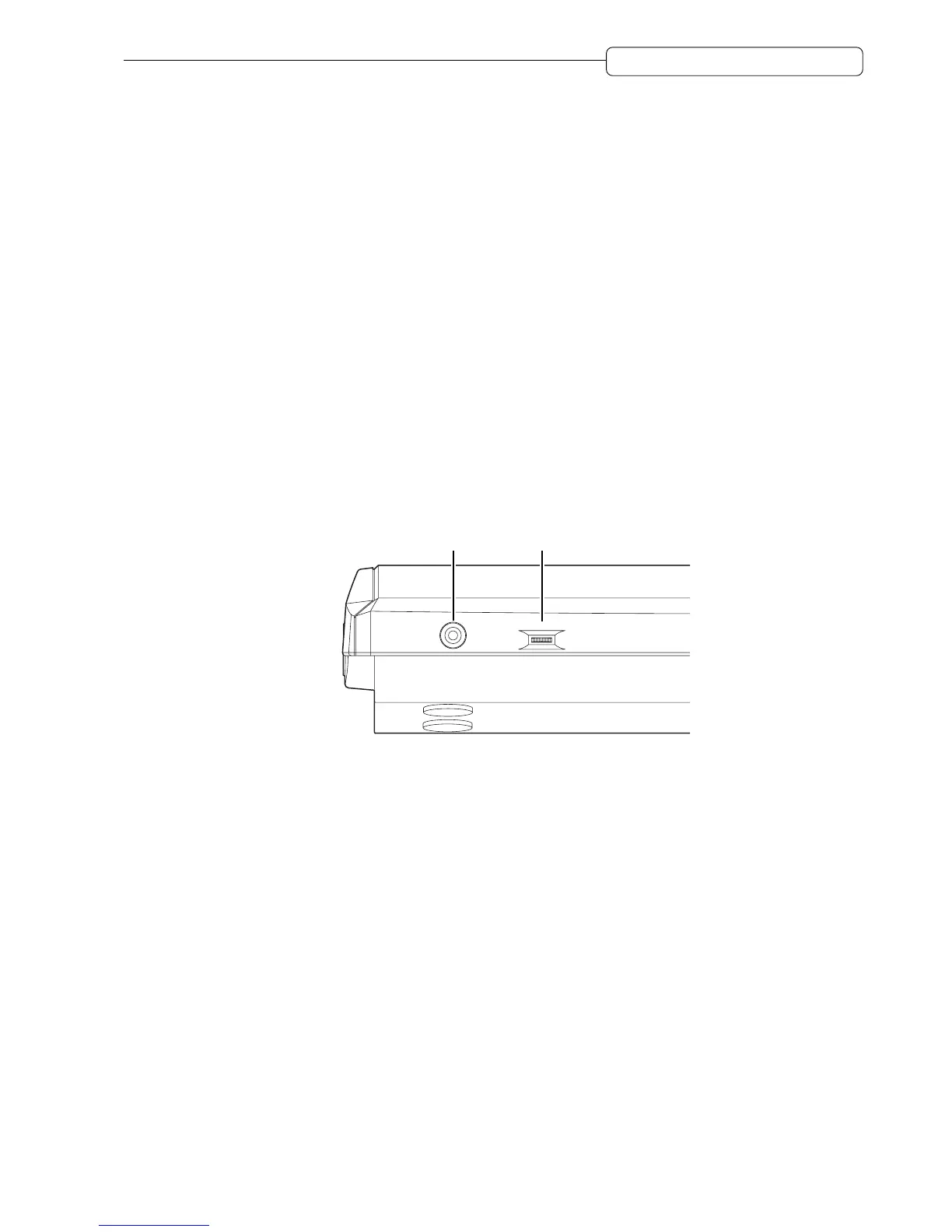

Front Panel
PHONES
LEVEL
MIN MAX
A
B
A PHONES (headphones) jack
Connect monitoring headphones to this jack, which outputs the same signal as that output from the MONITOR
OUT jacks on the rear panel. Use the [LEVEL] control (2) described below to adjust the output level at this
jack. The level is not affected by the [MONITOR LEVEL] knob setting on the top panel.
B LEVEL (headphone level) control
This control adjusts the volume level of the headphones connected to the PHONES jack.
