128
Chapter 11: Using a Disk (Disk Mode)
Follow the steps below to format or erase the disk.
1. On the Disk List screen, move the cursor to select a hard disk (ATA or SCSI 0-7) to format or erase.
Select a device that has an indication of NOW SELECTED, NOT FORMATTED, or RECORDABLE DISK in the
Status field. To format an unformatted hard disk, select a NOT FORMATTED device.
2. Press the [F1] ( FORMAT) key.

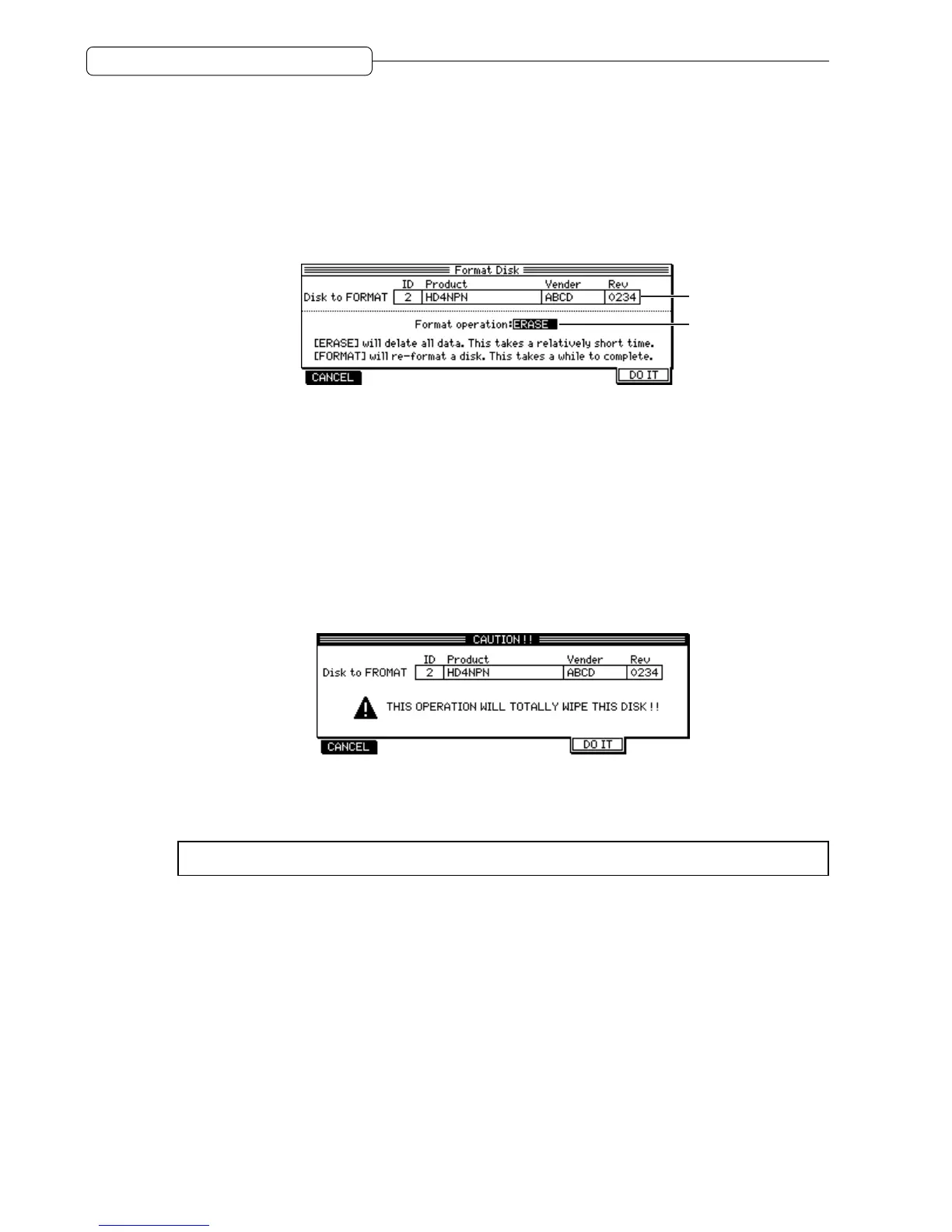

The following screen appears.
1
2
1 Disk to FORMAT
Indicates the information on the hard disk selected in step 1 (ID, product name, manufacturer, and version
number).
2 Format operation
Enables you to select a type of formatting (FORMAT/ERASE).
3. Move the cursor to the Format operation field (2), and use the [JOG] wheel to select FORMAT or
ERASE.
4. Press the [F6] ( DO IT) key.
The DPS16 displays the screen that asks you for confirmation to execute the format/erase operation.
Press the [F1] (CANCEL) key to cancel the operation.
5. Press the [F5] (DO IT) key to execute the format/erase operation.
The DPS16 performs the format or erase operation. When the operation is completed, the screen used to create
a new Project automatically appears.
➸
NOTE :
Refer to page 112 for more information on how to create a new Project.
When a new Project is created, the DPS16 displays the Main screen that indicates the formatted disk as the
current disk and the new Project as the current Project.
To Next Page
