Chapter 13: Using the Effects
5. Move the cursor to the right of the knob displayed in the Send 1 field, and adjust the Send 1 level.
• Set the level to 60 – 70 so that you can hear the reverb effects. Fine-adjust the level later while playing the
DPS16.
• Inside the DPS16, AUX buses 1–4 are physically routed to FX 1–4 respectively (except for the effects being
used as insert effects).
• As you raise the Send 1–4 parameter values, signals are sent from the corresponding TRACK MIX channels to
FX1–4 via AUX buses 1–4.

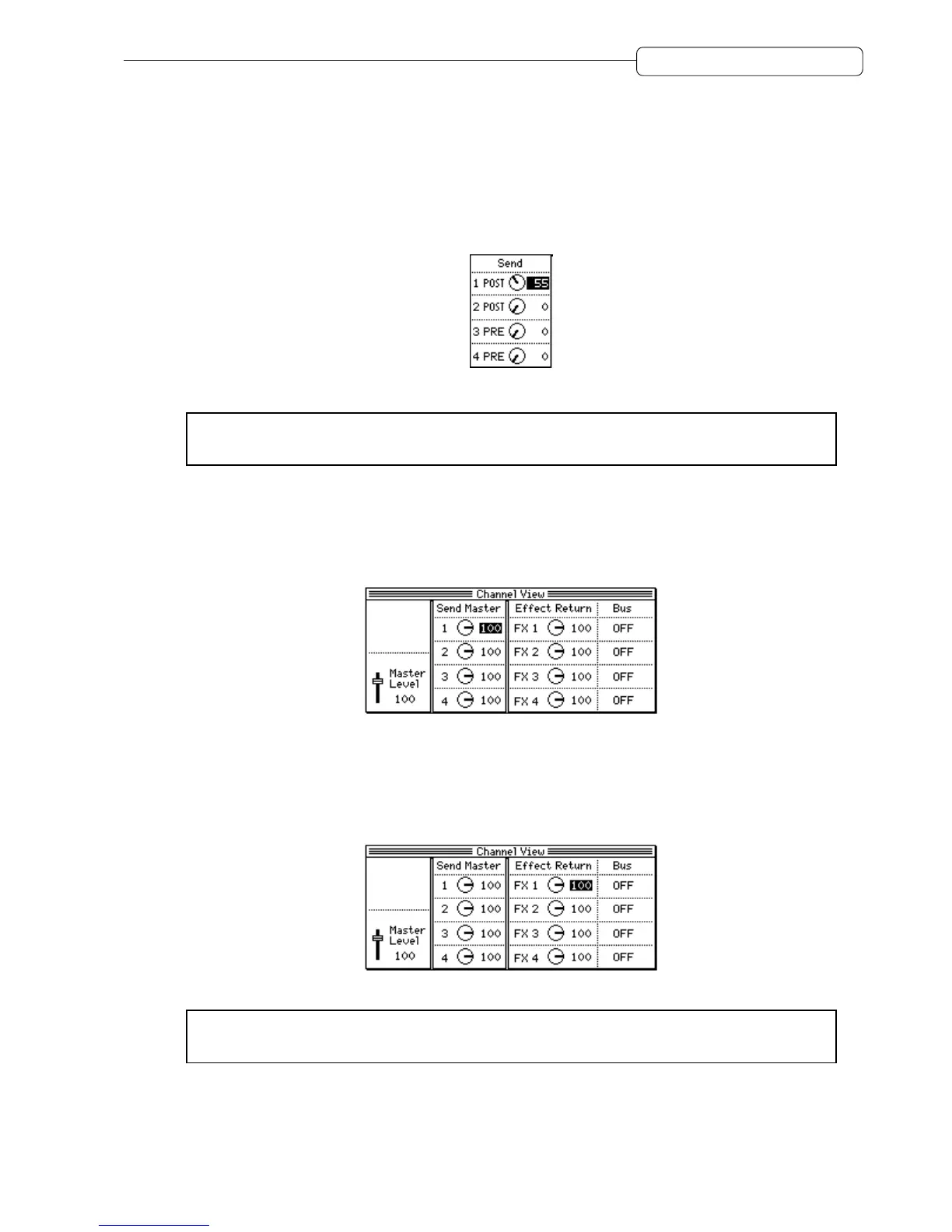

<ex. Send 1 level is set to 55.>
✐
TIP :
If you set QLMC’s “mode” to “MIXER” and “panel” to SEND, you can adjust SEND 1–4 level
settings using the QLMC (
[C1]
–
[C4]
knobs).
6. Repeat steps 3–5 to set the pre/post and send level parameters of other TRACK MIX channels.
7. Press the [MASTER] key to adjust the Send Master 1 level.
Send Master 1–4 parameters enable you to adjust the level of signals routed from AUX buses 1–4 to FX 1–4.
Leave the level to 100 (default). Fine-adjust the level later while playing the DPS16.
<ex. Send Master 1 level is set to 100.>
8. Adjust the Effect Return 1 level in the same screen.
Inside the DPS16, the outputs of FX1–4 are routed to the MASTER bus L/R. Effect Return 1–4 parameters
determine the return level (the level of the effect sound returned from FX1–4 to the MASTER bus L/R).
Leave the level to 100 (default). Fine-adjust the level later while playing the DPS16.
<ex.Effect Return 1 is set to 100.>
➸
NOTE :
Effect Return 1–4 parameters in this screen are the same as the Level fields displayed on the
Effect screen.
