Chapter 3: Transport/Locate Operation
1. Press the [WAVEFORM] key.

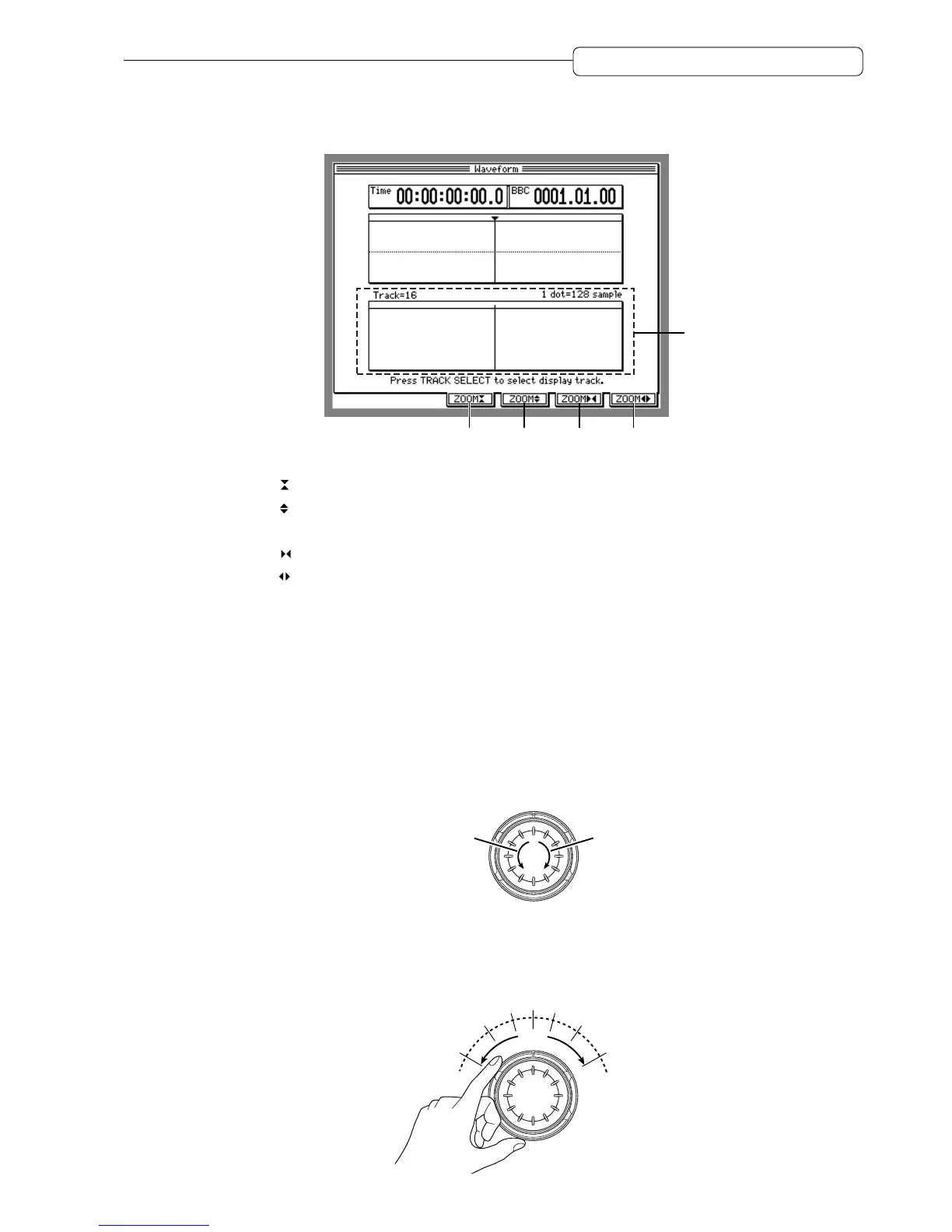

The DPS16 enters Waveform mode and displays the following screen.
1
2 3 4 5
1 Displays the audio waveform of the currently selected track.
2 [F3] (ZOOM ) key
3 [F4] (ZOOM ) key
These function keys are used to zoom the waveform in and out vertically.
4 [F5] (ZOOM ) key
5 [F6] (ZOOM ) key
These function keys are used to zoom the waveform in and out horizontally.
2. Select a monitoring track using the [TRACK SELECT] key.
3. Turn the [JOG] wheel or [SHUTTLE] knob.
As you turn the wheel or knob, the selected track is played and a vertical line on the waveform display moves
back and forth following the direction in which you rotate the wheel, indicating the current point.
The [JOG] wheel and [SHUTTLE] knob have the following functions in Waveform mode.
[JOG] wheel
Rotating the [JOG] wheel clockwise plays the track data in the normal direction. Rotating the wheel counter-
clockwise plays the selected track data in the reverse direction. The playback speed varies depending on how
fast you turn the wheel. This function is useful when you wish to locate a precise position in a song.
clockwise: normal direction
counterclockwise: reverse playback
[SHUTTLE] knob
Rotating the [SHUTTLE] knob clockwise plays the track data in the normal direction. Rotating the knob
counterclockwise plays data in the reverse direction. The playback speed varies between approximately one
fourth (1/4) times speed and normal speed. This function is useful when you wish to find an approximate
position in a song.
reverse playback at one fourth times speed
playback at one fourth times speed
reverse playback at half speed
playback at half speed
0
reverse playback at normal speed
playback at normal speed
To Next Page
