23

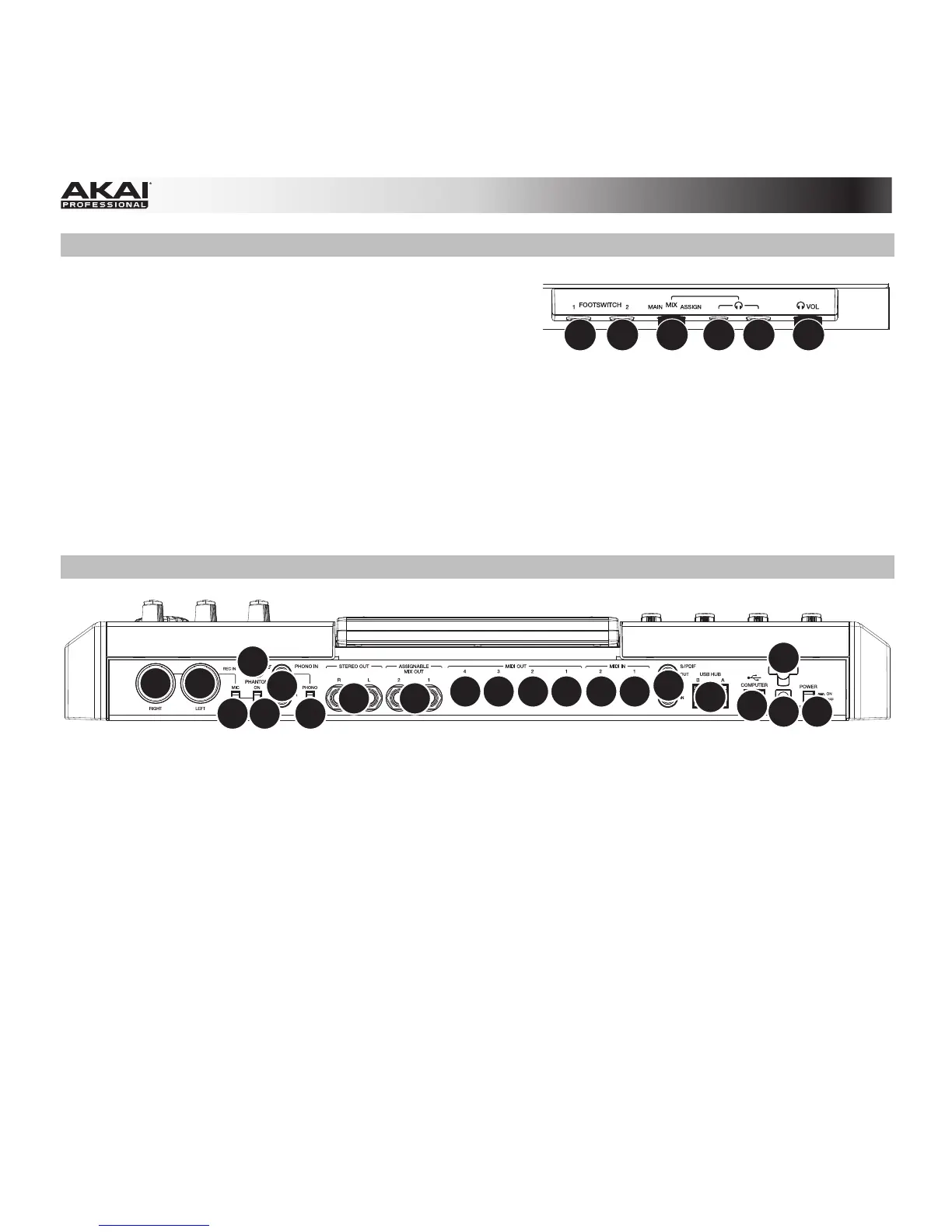

Front Panel
1. Footswitch Inputs: Connect optional 1/4" TS
footswitches to these inputs.
2. Mix Knob: Use this knob to adjust the balance
between the Main and Assign signals in your
headphones. The Main signal is the Stereo Outs.
The Assign signal is the Assignable Mix Outs 1 and 2.
3. Headphones: Connect your headphones (not included) to one of these standard TRS outputs (1/8"
or 1/4"). Use the Mix Knob to determine what signal is heard in the headphones.
4. Headphones Volume: Use this knob to adjust the headphone volume.
Rear Panel
1
2
3
4
5
67
8
99
12
14
15 1516 1616 16
10 11
13
1. Power Input: Connect a 12V DC, 2A power adapter (center pin positive) to this jack then into an
electrical outlet.
2. Power Adapter Restraint: You can secure a power adapter cable to this restraint to prevent it from
accidentally unplugging.
3. Power Switch: Turns MPC Renaissance's power on/off.
4. Computer USB Port: Use the included USB cable to connect this high-retention-force USB port to
an available USB port on your computer. This connection allows MPC Renaissance to send/receive
MIDI and audio data to/from the MPC software.
5. USB Hub Outputs: You can connect additional USB devices (controllers, hard drives, etc.) to these
powered, high-speed USB 2.0 ports. In addition to being an audio interface, these ports allow MPC
Renaissance to function as a powered USB hub when it is powered on.
1 1 2 3 3 4
