3 — Troubleshooting using network alarms
3-22 Alcatel-Lucent 5620 Service Aware Manager, Release
Troubleshooting Guide 3HE 05723 TQZZA Edition 01

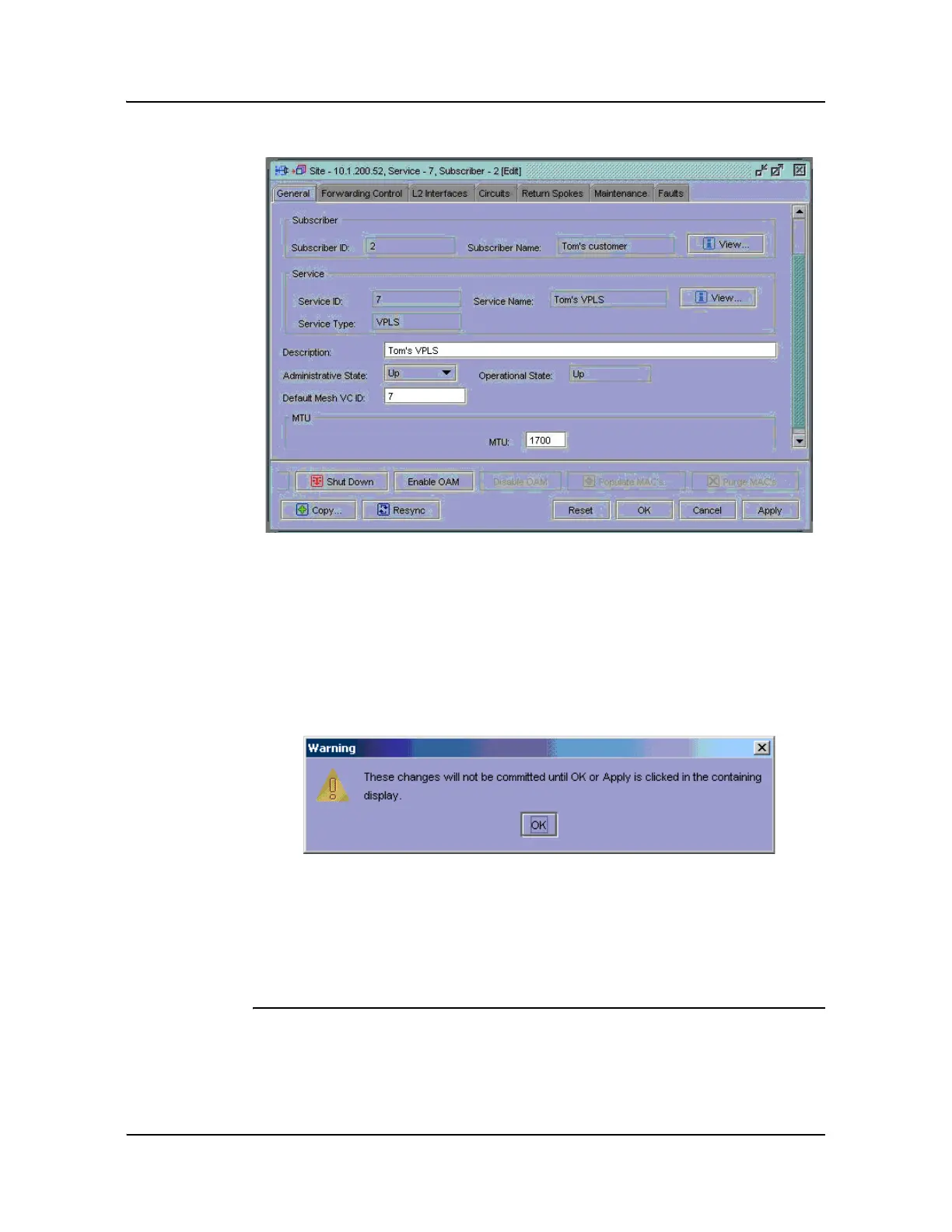

Figure 3-11 Site form
The MTU parameter indicates that the SDP binding maximum frame size is greater
than the actual tunnel frame size of 1492 octets that supports the SDP binding.
8 Change the MTU to a value less than 1492, for example, 1000.
9 Click on the Apply button. A warning message appears, as shown in Figure 3-12. It
warns you that changes to this Site form are not applied to the service unless you
click on the OK or Apply button in the Service form.
Figure 3-12 Warning to apply changes to all objects
10 Click on the OK button. The Services form appears.
11 Click the Apply button. The warning message in Figure 3-12 again appears.
12 Click on the Apply button. The MTU configuration change is applied to customer,
service, and site objects. The SDP binding and related service alarms clear
automatically.
