x530 Series Installation Guide for Virtual Chassis Stacking
43
x530-28GTXm and x530-52GTXm
The x530-28GTXm and x530-52GTXm LEDs indicate Link/Activity (L/A)
and Duplex/Collision (FDX/HDX/COL) information. These LEDs are shown
in Figure 13.

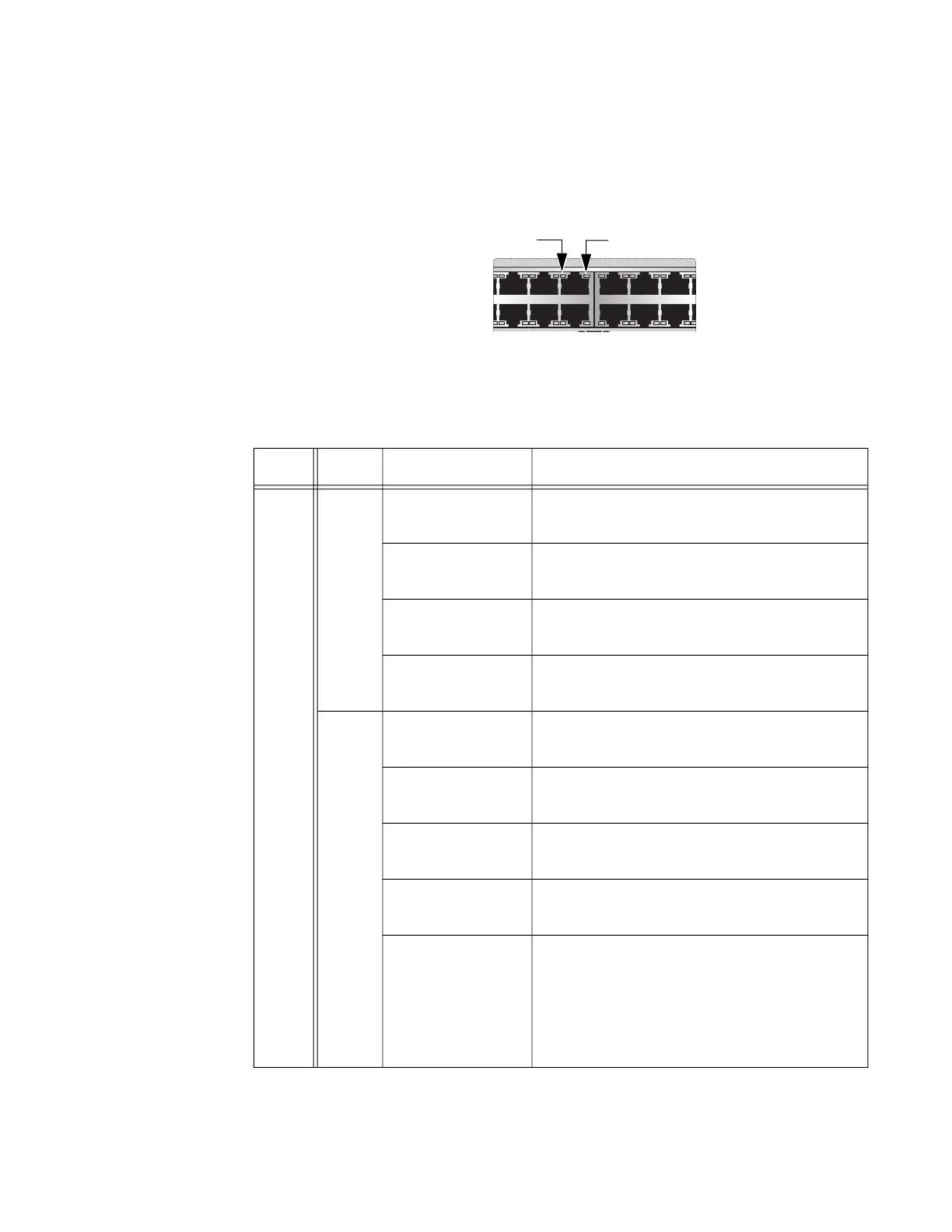

Figure 13. x530-28GTXm and x530-52GTXm Copper Ports LEDs
The states of the x530-28GTXm LEDs are described in Table 12.
7 9 11 13 15 17
16 1814
81012
L/A LED D/C LED
Table 12. x530-28GTXm Copper Ports 1 - 24 LED Functions
LED Ports State Description
L/A
1 - 20
Solid Green The port has established a 1Gbps link to a
network device.
Flashing Green The port is transmitting or receiving data at
1Gbps.
Solid Amber The port has established a 10Mbps or
100Mbps link to a network device.
Flashing Amber The port is transmitting or receiving data at
10Mbps or 100Mbps.
21 - 24
Solid Green The port has established a 1/2.5/5Gbps
link to a network device.
Flashing Green The port is transmitting or receiving data at
1/2.5/5Gbps.
Solid Amber The port has established a 100 Mbps link
to a network device.
Flashing Amber The port is transmitting or receiving data at
100Mbps.
Off Possible causes of this state are:
- The port has not established a link with
another network device.
- The LEDs are turned off. To turn on the
LEDs, use the eco-friendly button.
