Chapter 1: Overview
40
LEDs
Each copper port has two LEDs that display the port status.
x530-10GHXm
The LEDs indicate Link/Activity (L/A) and PoE (PD ON/PD ERR/MAX
CURRENT) information. These LEDs are shown in Figure 11.

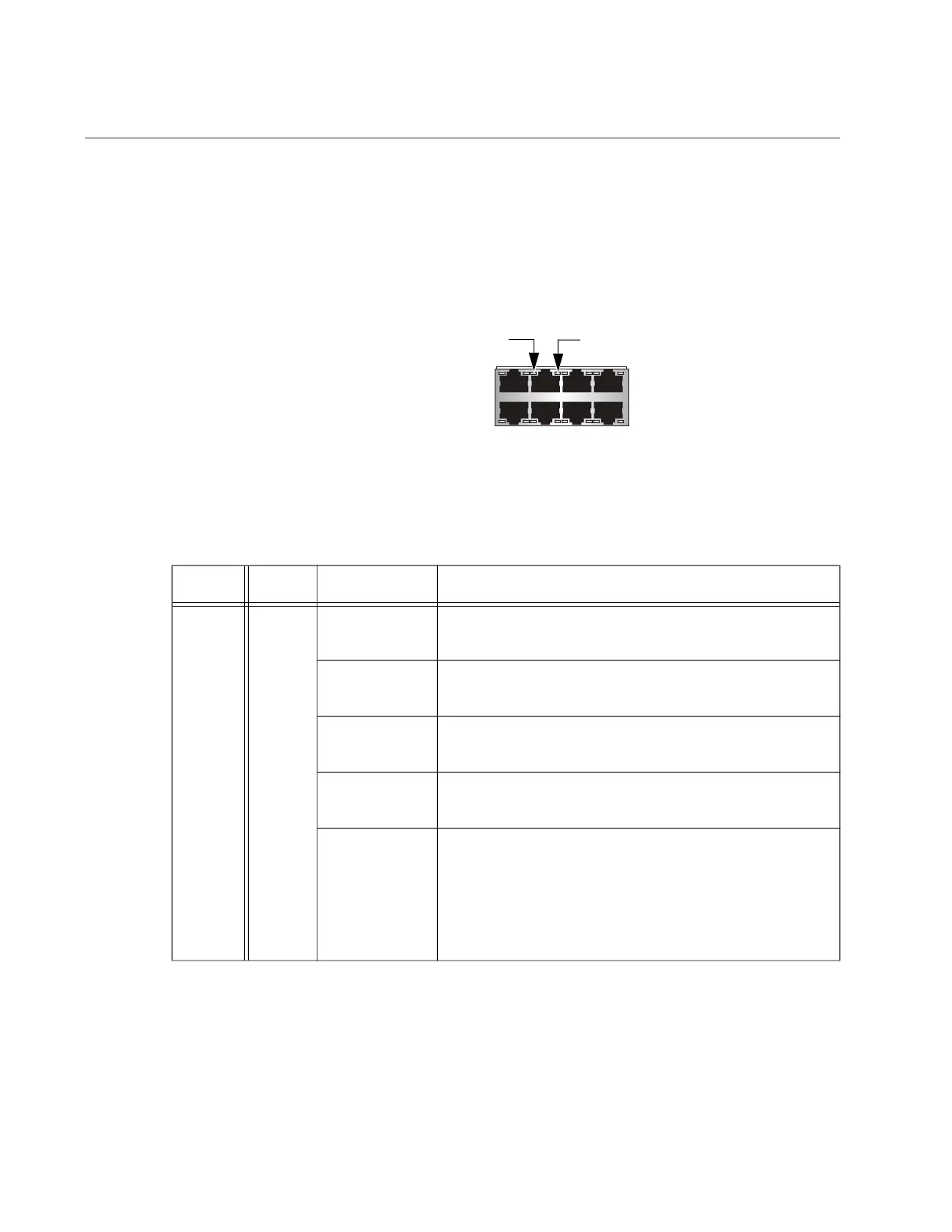

Figure 11. x530-10GHXm Copper Ports
The states of the x530-10GHXm LEDs are described in Table 10.
3517
4682
L/A LED PoE LED
Table 10. x530-10GHXm Copper Ports 1 - 8 LED Functions
LED Ports State Description
L/A 1 - 8
Solid Green The port has established a 1/2.5/5Gbps link to a
network device.
Flashing
Green
The port is transmitting or receiving data at 1/2.5/
5Gbps.
Solid Amber The port has established a 100Mbps link to a
network device.
Flashing
Amber
The port is transmitting or receiving data at
100Mbps.
Off Possible causes of this state are:
- The port has not established a link with another
network device.
- The LEDs are turned off. To turn on the LEDs, use
the eco-friendly button.
