x530 Series Installation Guide for Virtual Chassis Stacking
179
6. Verify the position of the handle on the transceiver. If the transceiver is
in a top slot, the handle should be in the upright position, as shown in
Figure 68. If the transceiver is in a bottom slot, the handle should be in
the down position.

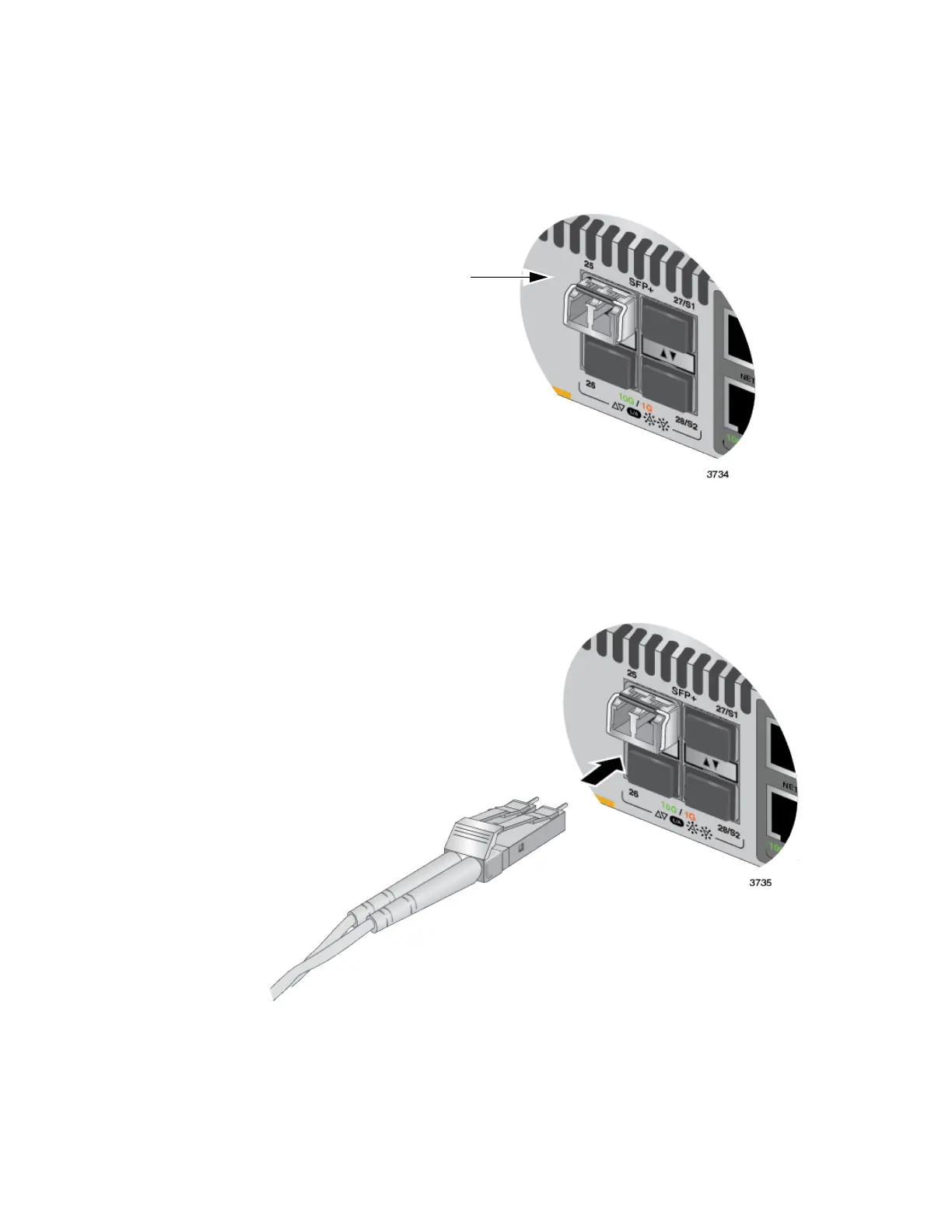

Figure 68. Positioning the SFP or SFP+ Handle in the Upright Position
7. Connect the fiber optic cable to the transceiver, as shown in Figure 69
on page 179. The connector on the cable should fit snugly into the
port, and the tab should lock the connector into place.
Figure 69. Connecting a Fiber Optic Cable to an SFP or SFP+ Transceiver
8. Repeat this procedure to install and cable additional transceivers.
SFP Handle
