x530 Series Installation Guide for Virtual Chassis Stacking
105
Installing the Bumper Feet with Rivets on the Switch
The x530-10GHXm and x530-18GHXm switches come with four bumper
feet in the accessory kit. The feet, which are reusable, are used when
installing the switch on a table. If they are already assembled, disassemble
them by removing the rivets and rivet housings from the bumper feet.
Refer to Figure 33.

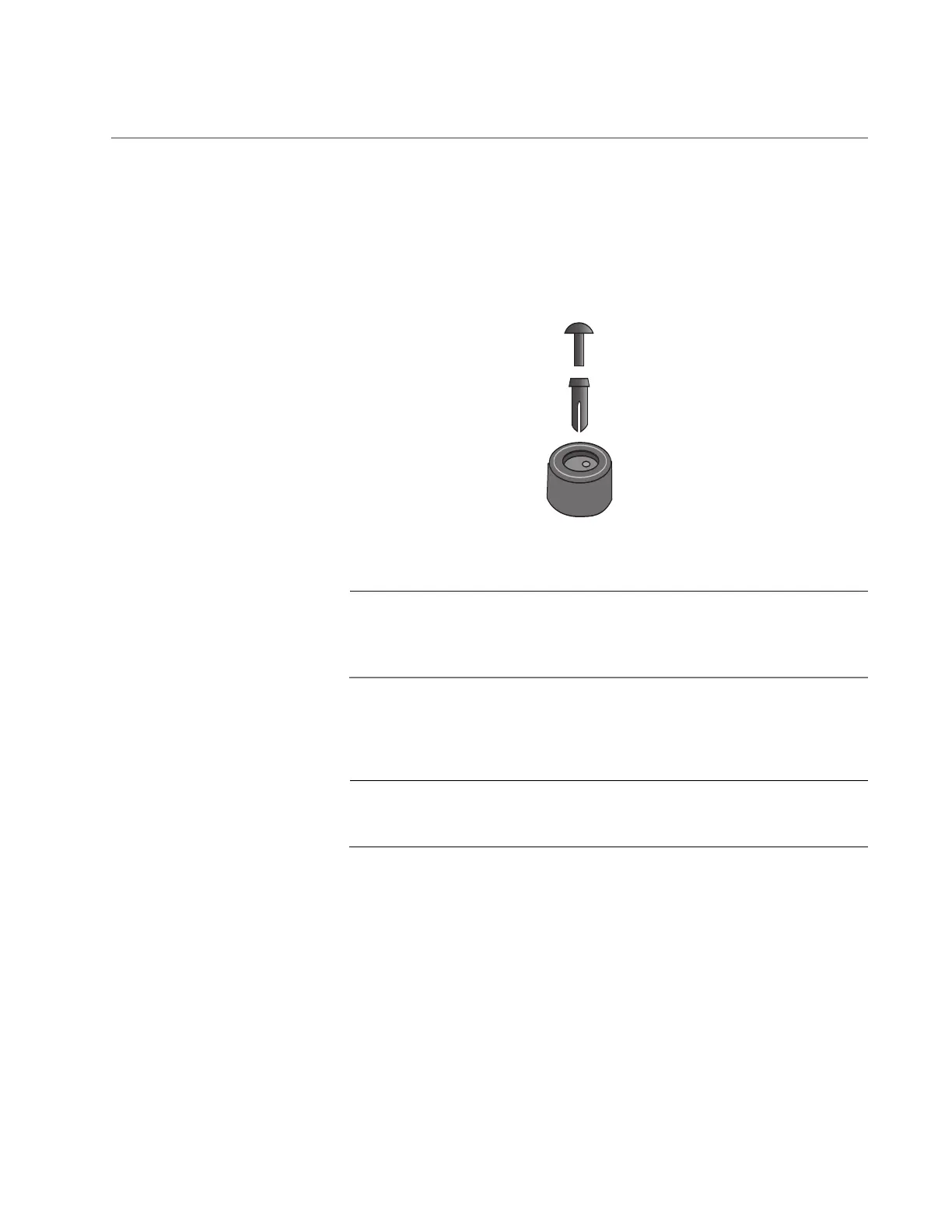

Figure 33. Parts of the Bumper Feet
Note
The following procedure assumes that you have already reviewed
the information and performed the procedures in Chapter 3,
“Beginning the Installation” on page 91.
The holes in the base of the switch for the bumper feet are shown in
Figure 34.
Note
Although you cannot stack the switches on top of each other, they
can be placed next to each other.
Rivet
Rivet Housing
Bumper Foot
