4.4 Cl module
The Cl module consists of the following main components:
 Wide range coulometer for amperometry
 Stirring/cooling block for the measuring cells
 Measuring cells with electrodes
 Sulfuric acid container, possibly with splitting outlet and safety container
 Splitting valve
 Buffer container as pressure compensation to compensate the switching pulses of
the splitting valve
 Adsorption tube
 Halide trap
The control electronics for the multi EA 4000 Cl is also located in the Cl module.

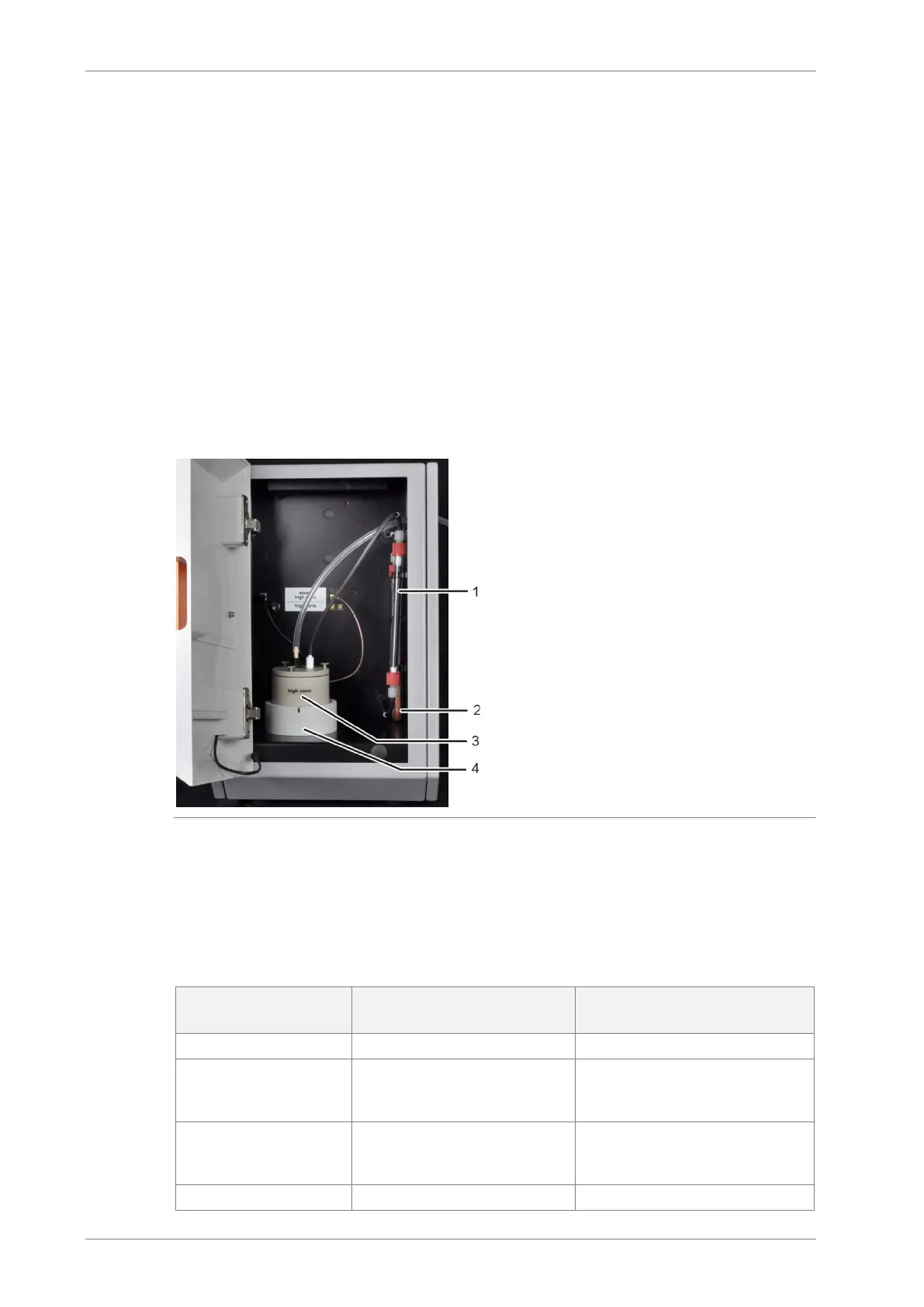

1 adsorption tube
2
halide trap
3
measuring cell with electrodes
4
stirring/cooling block
Fig. 10 Cl module
4.4.1 Coulometer assembly and measuring cell
The measuring cell is available in 2 versions:
"sensitive" measuring cell
40 ml
"high concentration"
measuring cell 150 ml
Electrolyte volume approx. 20 ml approx. 120 ml
Measuring range – ab-
solute Cl (without
measuring gas splitting)
1 – 100 μg 10 – 1000 μg
Measuring range
(with measuring gas
splitting)
1 – 2 mg abs. Total chlorine 10 – 20 mg abs.
Total chlorine
Stirring principle Magnetic stirring Magnetic stirring
