4.6.2 Layout of the manual TIC solids module
TIC reaction chamber
The reactor is a 50 ml Erlenmeyer flask onto which a TIC head is placed with three connec-
tions for the supply of the phosphoric acid, the oxygen as carrier gas and the measuring gas.
A magnetic stirrer with heated working plate ensures a good mixing of the sample with the
supplied acid and heats it slightly to accelerate the reaction.
1 phosphoric acid supply (hose no. 6)
2
measuring gas outlet
3
carrier gas supply (oxygen)
4
Erlenmeyer flask
5
magnetic stirring rod
6
magnetic stirrer with heated working plate

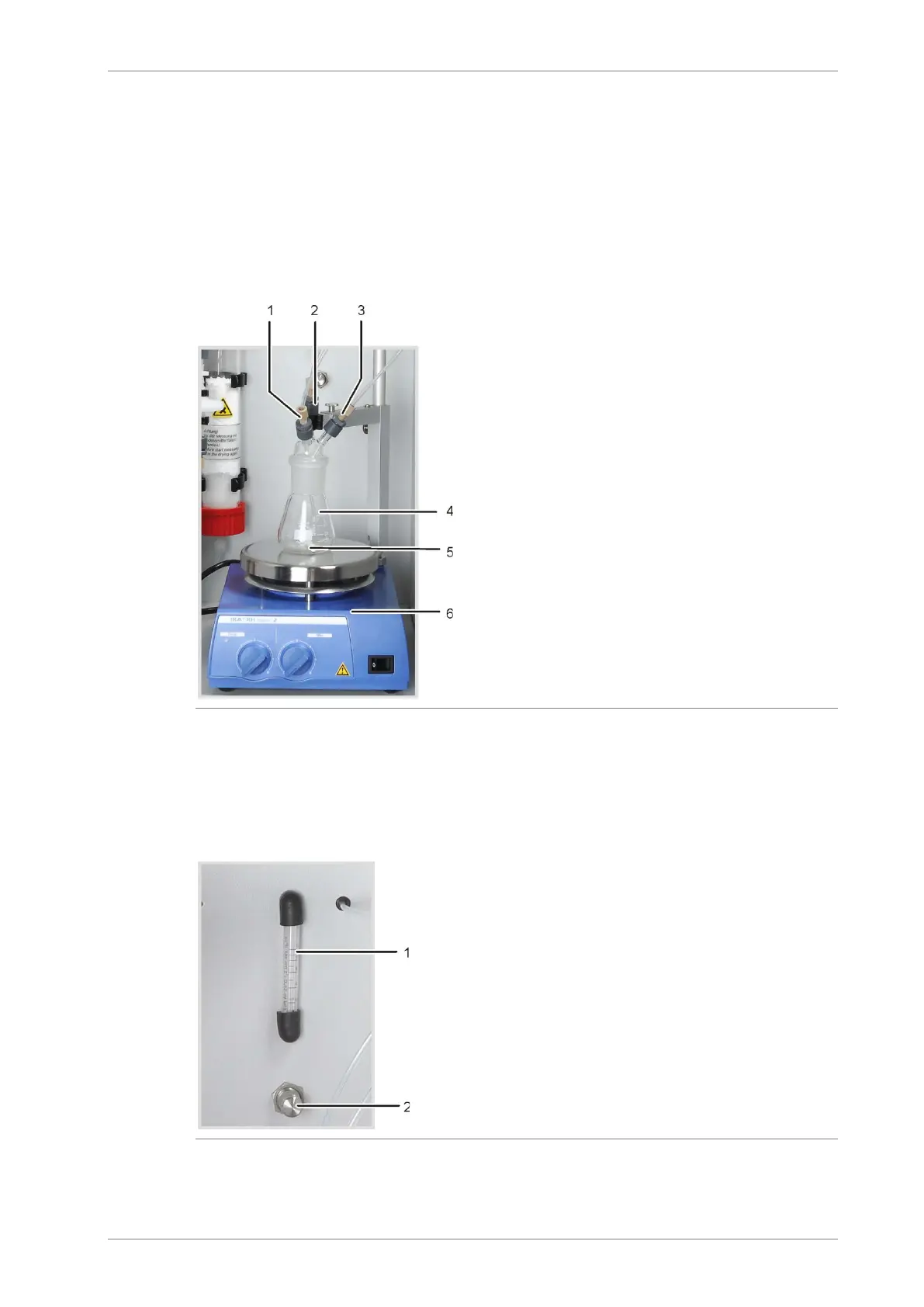

Fig. 25 TIC reactor of the manual TIC solids module
Flow adjustment of the carrier gas flow
The carrier gas flow is adjusted via the needle valve "O2" with glass gauge on the rear of the
manual TIC solids module.
1 glass gauge
2
needle valve
Fig. 26 Flow meter for oxygen flow
