System design
36 Edition 01/2016 multi EA 4000
1 halide trap
2
condensate container
3
Peltier cooling block
4 drying tube
5
condensation coil

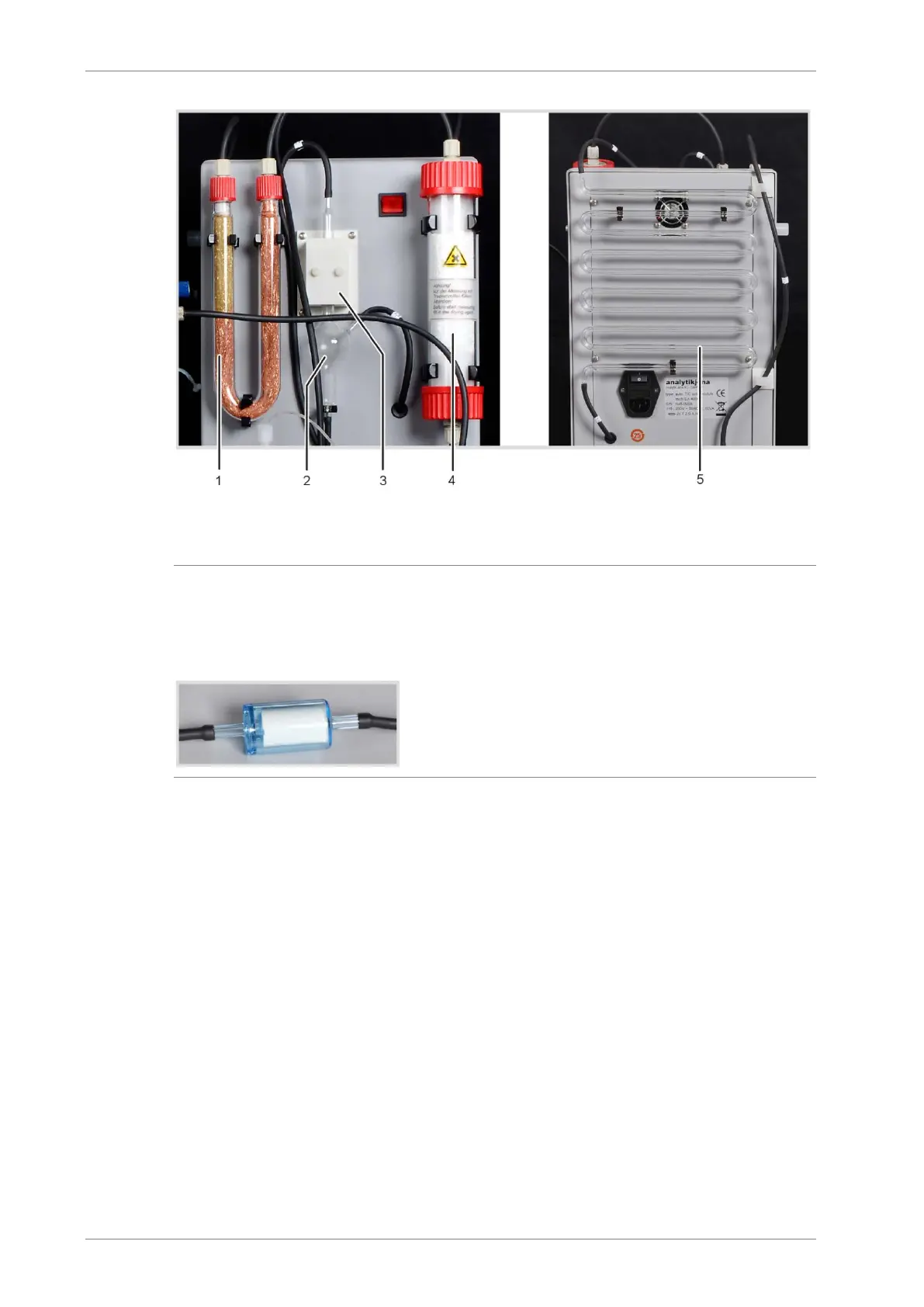

Fig. 21 Measuring gas drying and cleaning at the automatic TIC solids module
A dust filter is located between the change-over valve on the rear of the automatic TIC solids
module and the measuring gas inlet of the C/S module.
Fig. 22 Dust trap before the measuring gas inlet of the C/S module
