1. Slide the boat sensor from the left onto the
short guide rail of the FPG 48.
2. Using the two hexagon socket screws tight-
en the boat sensor.
3. Connect the boat sensor to the "aux" con-
nection at the rear of the FPG 48.
To resume a measurement after cancellation:
1. Confirm the error in the software.
2. Remove the broken boat, if applicable.
3. Slide the ceramic hook and its sliding rod manually to the stop plate.
4. Re-initialize the device.
10.4.5 Retrofitting the sampler FPG 48 with a boat storage
For measurements using the automatic TIC solids module the sampler must be converted.
An ejection rail for used boats and a cover for the longer ceramic rod are retrofitted.
Note: The boat storage can also be ordered separately and retrofitted.
1 block with ejection rail
2
hexagon socket screws with washers
3
cover for ceramic hook

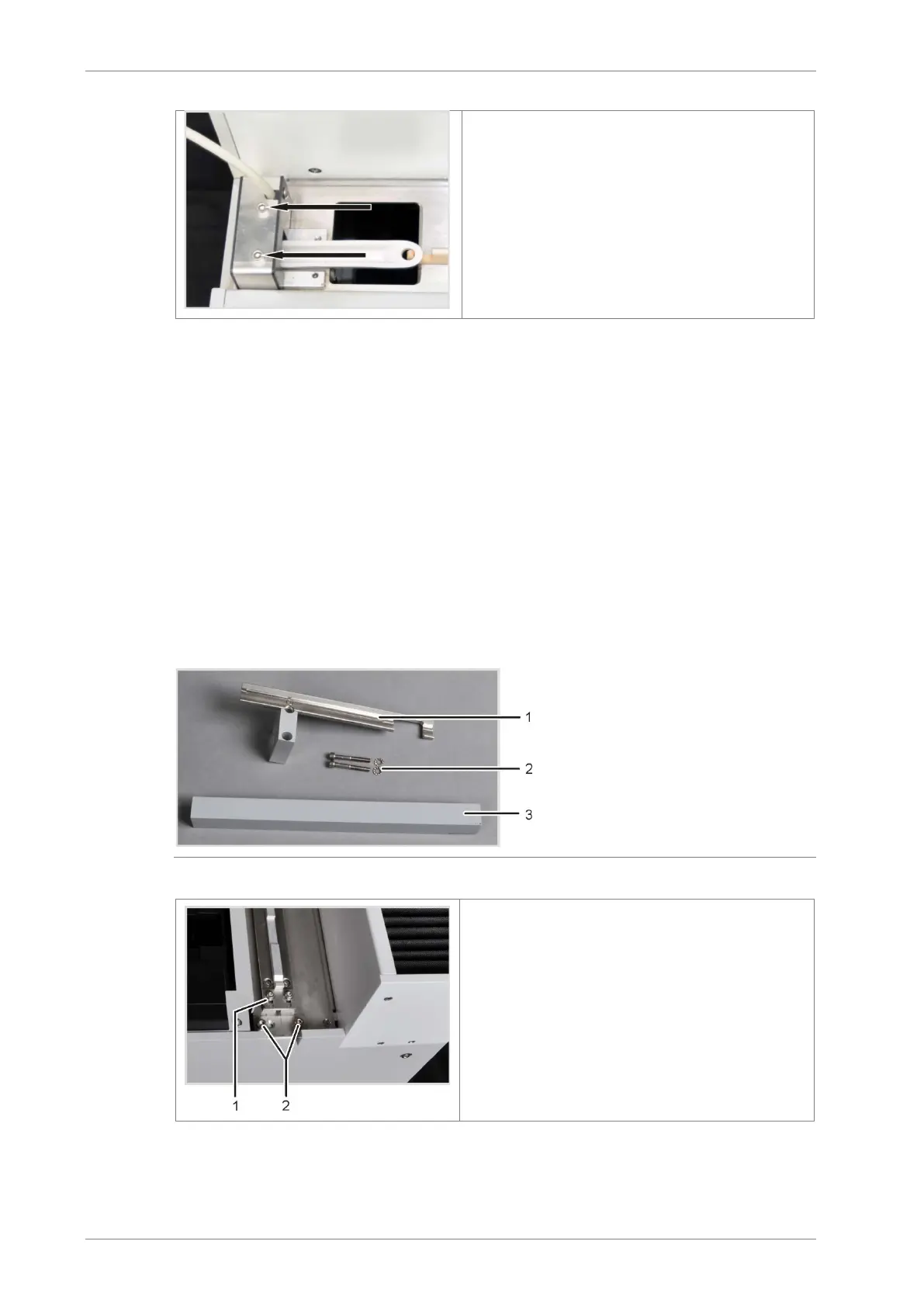

Fig. 44 Retrofit kit for FPG 48 to use the boat storage
1. Unscrew the stop plate of the guide rail (1).
2. Remove the two hexagon socket screws
(2).
