10.4.2 Filling the sampler FPG 48
CAUTION! RISK OF CRUSHING!
The rotating sample rack and the moving boat gripper can crush your hand.
Great caution is required when filling the sample rack.
After filling, close the acrylic glass cover above the sample rack.
Do not reach into the sample rack or the boat gripper during an ongoing
measurement.

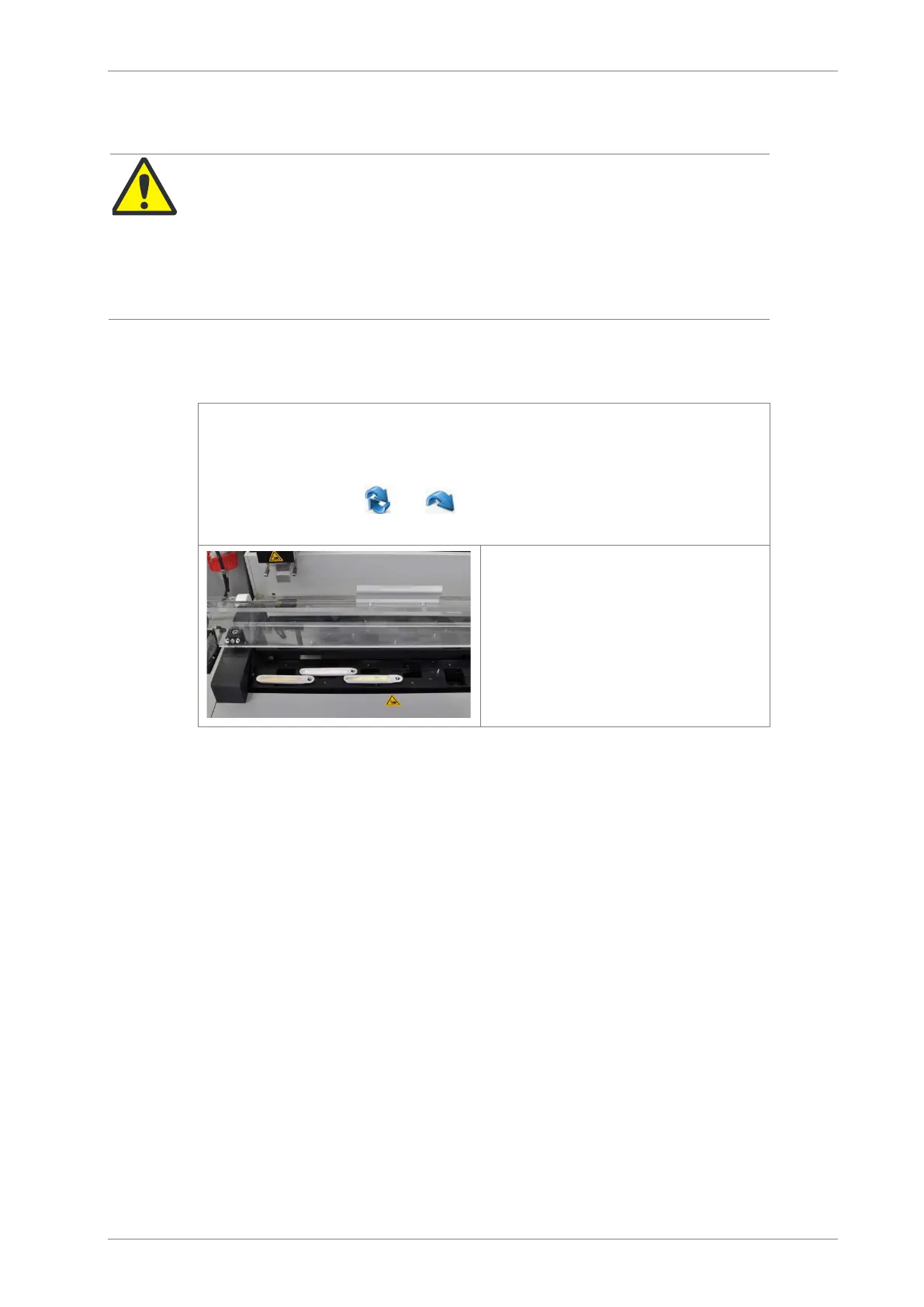

The FPG 48 is filled during the measurement preparation for the multi EA 4000. The multi
EA 4000 and the FPG 48 must be switched on and have been initialized in the multiWin pro-
gram.
6. Load sample material into the ceramic boats and make the boats available
adjacent to the sampler.
7. Fold the cover above the sample rack upwards.
8. Using the buttons and in multiWin rotate the sample rack into the
desired position.
9. Place the loaded boats into the
corresponding sample positions.
The short metal pin to the right of
the sample position must protrude
into the opening of the boat.
10. After filling the sample rack fold
the cover down.
10.4.3 Measurement cancellation when using the sampler FPG 48
After a manual measurement cancellation or a measurement cancellation due to device fault
may result in the ceramic hook being in an unfavorable location and breaking off if the
measurement is continued.
Move the ceramic hook manually to the limit stop before resuming the measurement
process.
10.4.4 Retrofitting the sampler FPG 48 with a boat sensor
The boat sensor monitors the boat transfer from the sampler FPG 48 to the furnace. It de-
tects the following fault conditions:
Ceramic boat broken
No ceramic boat on the hook
If one of the fault conditions occurs, the measurement is canceled immediately. An error
message is issued in the multiWin software.
Note: The boat sensor can also be ordered separately and retrofitted.
Install the boat sensor on the sampler as follows:
