Transport and storage
140 Edition 01/2016 multi EA 4000
This prevents the boat from moving when
picked up by the gripper.
9. Click on [SAVE AND EXIT].

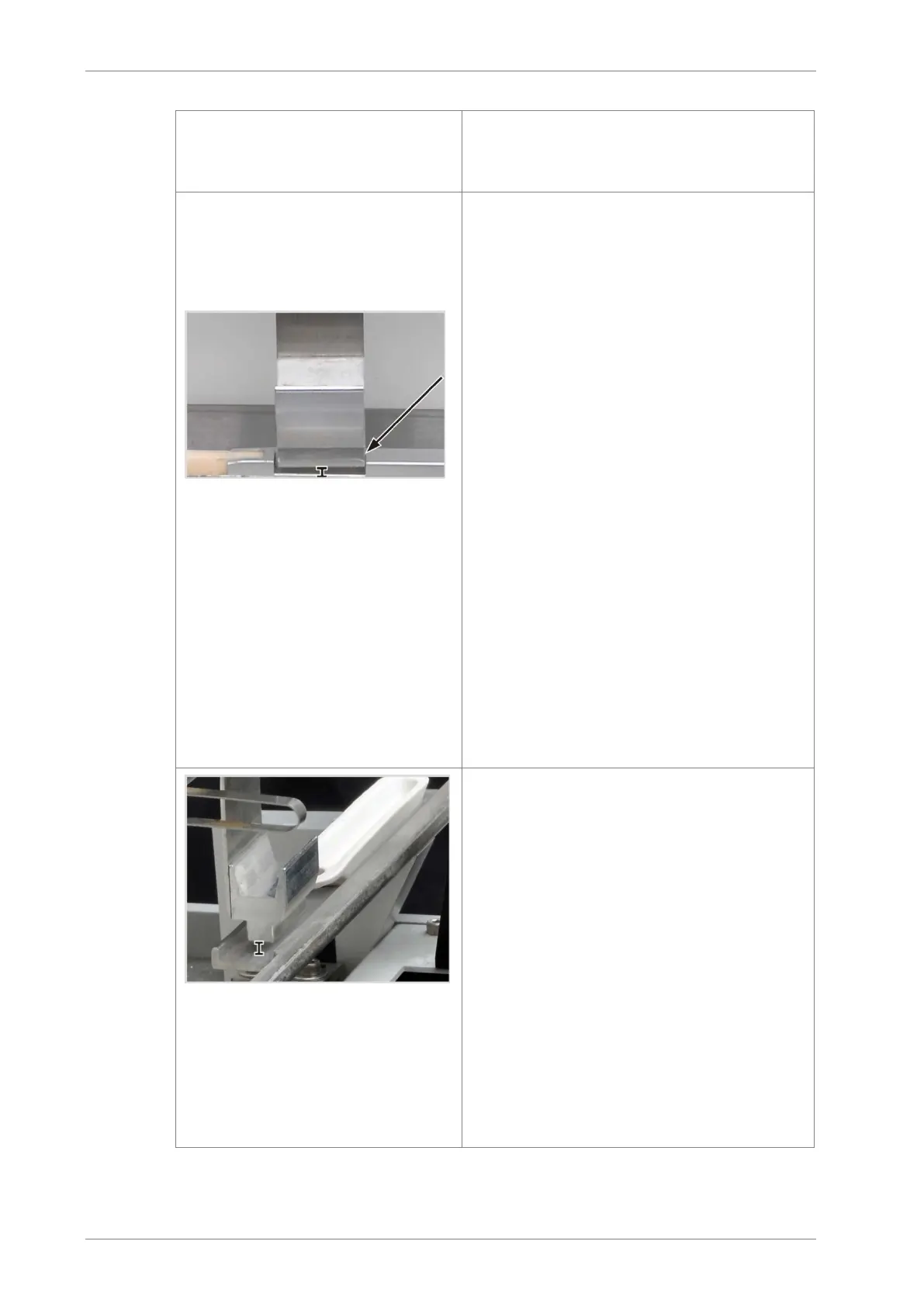

Sliding position
The sliding position is the cut-out in the sliding
rod of the ceramic hook. The sampler arm en-
ters this cut-out and moves the hook into the
furnace.
1. Place the ceramic hook and sliding rod
against the stop plate of the FPG 48.
2. Select the option
SLIDING POSITION in the
S
AMPLER ALIGNMENT window from the list
and click on [A
DJUST POSITION].
The sampler arm moves above the sliding
position.
3. Using the slider
HIGHER / LOWER adjust the
lowering depth of the gripper. Using the
buttons [
LEFT] / [RIGHT] and [BACKWARDS] /
[
FORWARDS] adjust the position in the cut-
out.
The gripper must be adjusted flush right
and centered in the cut-out.
The gripper must hover approx. 1 mm
above the cut-out. The sampler arm must
not exert any pressure on the sliding rod.
4. Set the new position by clicking on [
ADJUST
POSITION].
5. Repeat the process until the adjustment is
correct. Then click on [
SAVE AND EXIT].
Ejection rail
Only if the boat storage is fitted (e.g. when using
the automatic TIC solids module)
1. Select the option
EJECTION RAIL from the list
in the
SAMPLER ALIGNMENT window and click
on [
ADJUST POSITION].
2. Using the slider
HIGHER / LOWER adjust the
lowering depth of the gripper.
The gripper must hover approx. 1 mm
above the rail and must not rest on it.
3. Place a boat next to the gripper and check
that the boat cannot slide under the gripper.
4. Set the new position by clicking on [
ADJUST
POSITION].
5. Once the position has been adjusted click
on [
SAVE AND EXIT].
